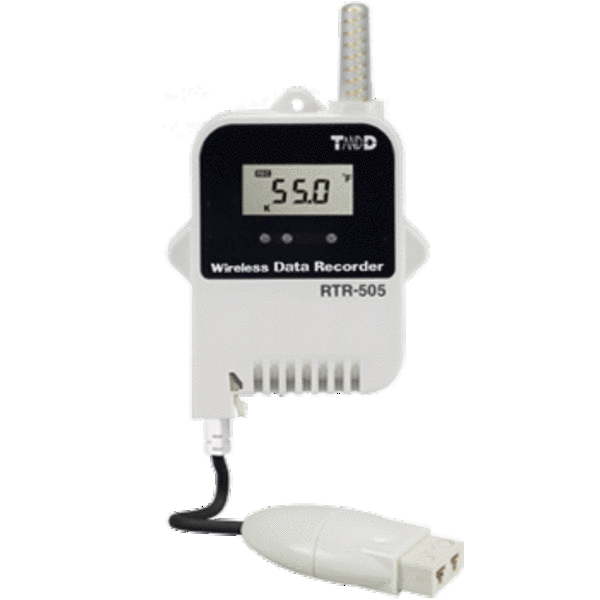

RTR-505-TC Wireless Thermocouple Logger
The RTR-505-TC is a data logger designed to measure and record temperature using a thermocouple (Type K, J, T or S).
16,000 readings means you can record every one second and still log four and a half hours of data; or at a recording interval of 60 minutes you can keep logging for 666 days. By using the software the recording interval for a Remote Unit can be set to one out of fifteen choices (1 second to 60 minutes).
Select the Recording Mode from Endless or One Time. When using Endless Mode, upon reaching the logging capacity the oldest data is overwritten and recording continues. When using One Time, upon reaching logging capacity recording automatically stops.
The Data Loggers are outfitted with a long lasting Lithium Battery (LS14250). At normal temperature, if recorded data is downloaded once a day or if monitoring is carried out once every ten minutes, the estimated battery life will be about ten months.
The Data Loggers in the RTR-500 Series only function as Remote Units. They require one of the following: Base Unit or Hand Held with which to carry out wireless communication.
| Type of Sensor: | Thermocouple |
| Temperature Sensing Range: | -326°F ~ 3,092°F (-199°C ~ 1,700°C) |
| Temperature Accuracy: | +/- 2°F (+/- 1°C) typical |
| Temperature Resolution: | 2°C |
| Temperature Scale: | °F or °C |
| Sampling Rate: | 1 second to 1 hour |
| Special Notes: | Wireless transmission range: 150 meters (500 ft) if unobstructed, Logging capacity of 16000 readings, PTM-3010 input module included |
