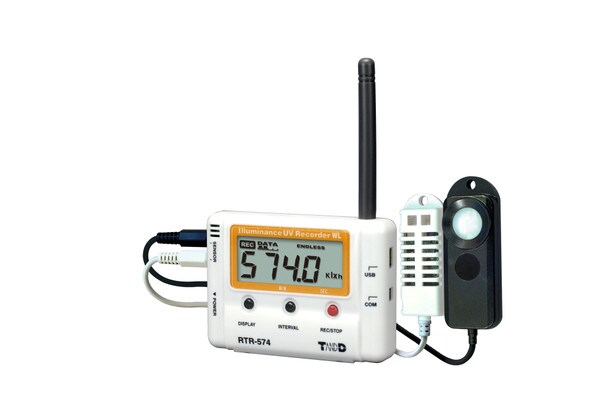

RTR-574 Wireless Data Logger

(0)No Reviews yet
$394.33
QuantityPrice
1 – 9$394.33
10 – 24$374.62
25 – 49$354.89
50 – 99$335.18
100 +$315.46
SKU: TADREC039
Provided: Each
Measures Illuminance, UV Intensity, Temperature, and Humidity
32°F ~ 131°F ( 0°C ~ 55°C )
  • Simultaneously Measure and Record Illuminance, Ultraviolet (UV), Temp and Humidity
  • Stores 8,000 Data Samples Between Wireless Transmissions to Base Collector or Repeater
  • 150 Meters Line of Sight Transmission Between Devices (Logger to Base Collector or Repeaters)
  • Automatic Transmission of Data (Current or Logged) at Set Intervals to Base Collector or Repeater
  • View Current Cumulative Illuminance, and Cumulative Amount of UV Light on 4 Digit Display
  • Includes Logger, AA Alkaline Battery, USB Cable, PC Software, User Manual and Sensors w/ 10 Meter Cable

Notable Features

The RTR-574 includes two sensors to measure and record Illuminance/UV and temperature/humidity. The RTR-574-H includes our high precision temperature/humidity sensor and the Illuminance/UV sensor.

This Data Logger allows for the measuring and recording of the above items in various places such as facilities where people gather, where important documents and fine arts are being stored or displayed, where food-items and drink is being stored. Also, cumulative illuminance and the cumulative amount of UV light can be easily viewed even without stopping recording.

The Data Loggers in the RTR-500 Series only function as Remote Units. They require one of the following: Base Unit or Hand Held with which to carry out wireless communication.

  • Part Number: TADREC039
  • Measurement Channels:
    • Temperature
    • Humidity
    • Illuminance
    • UV Intensity
  • Units of Measurement:
    • °C °F
    • %RH
    • lx Klx
    • mW/cm2
  • Measurement Ranges:
    • 0 to 55°C
    • 10 to 95%RH
    • 0 lx to 130 Klx
    • 0 to 30 mW/cm2
  • Measurement Accuracies:
    • ±0.5°C
    • ±5 %RH [at 25 °C 50 %RH]
    • ±5 % [at 25°C 50 %RH]
    • ±5 % [at 25°C 50 %RH]
  • Measurement Resolution:
    • 0.1°C
    • 1 %RH
    • Minimum of 0.01 lx
    • Minimum of 0.001 mW/cm2
  • Dimensions: 55mm x 78mm x 18mm
  • Antenna Length: 60mm
  • Selectable recording intervals from 1 second to 60 min
  • 4 Month Battery Life (typical)
  • Data Logger
  • Instruction Manual
  • Strap
  • Expert Technical Support
  • AA Battery

Collects environmental conditions to be downloaded via USB cable to PC or handheld data collector ( TADREC067)
