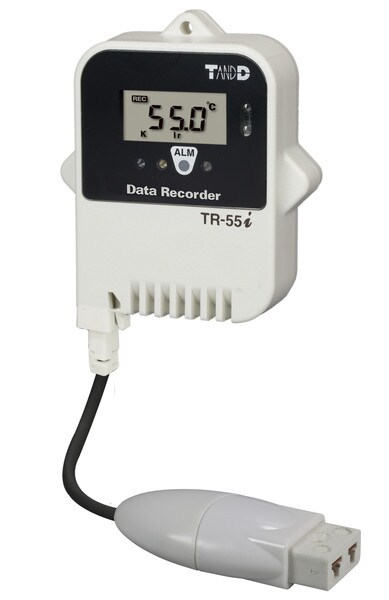

  • TADREC043: TR-55i-TC Compact Waterproof Data Logger with Thermocouple Input Module

Waterproof Data Logger Thermocouple Input

(0)No Reviews yet
$233.40
QuantityPrice
1 – 9$233.40
10 – 24$221.73
25 – 49$210.06
50 – 99$198.39
100 +$186.72
SKU: TADREC043
Provided: Each
-326 ~ 3092°F / -199 ~ 1700°C
Battery Operated
Accepts Thermocouples J-K-T-S

Notable Features

Our TR-55i Series data loggers are designed to measure and record temperature, voltage, 4-20mA, or pulse count. The body of the data loggers are water resistant and can be used in an environment of -40°C to 80°C. Moreover, battery-powered operation means the loggers can be placed anywhere without the need for AC power.


Depending on the model type, the TR-55i can measure and record temperature, voltage, 4-20mA, or pulse count. The body is water resistant when the Input Module is connected.

Note: Input Module is not water resistant.
  • Part Number: TADREC043
  • Measurement Channel:
    Temperature
  • Unit of Measurement:
    °C °F
  • Measurement Range:
    -199 to 1700°C
  • Measurement Accuracy:
    ±0.3°C + 0.3% rdg [Type K J T]
    ±1.0°C + 0.3% rdg [Type S]
  • Measurement Resolution:
    0.1°C [Type K J T]
    0.2
    °C [Type S]
  • Dimensions: 62mm x 47mm x 19mm
  • Selectable recording intervals from 1 second to 60 min
  • 14 Month Battery Life
  • Thermocouple Data Logger
  • Instruction Manual
  • Strap
  • Expert Technical Support
K: -199 ~ 1300 °C (-326.2 ºF ~ 2,372ºF)
J: -199 ~ 750 °C (-326 ºF ~ 1,382 ºF)
T: -199 ~ 400 °C (-326 ºF ~ 752 ºF)
S: -20 ~ 1700 °C (-4 ºF ~ 3,092 º F)
Water Resistance: IP64 (Splash-Proof)
