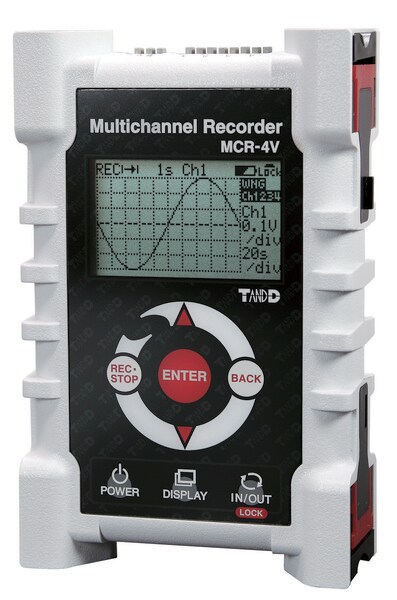

TandD MCR-4V 4 Channel Voltage Logger

(0)No Reviews yet
$398.00
QuantityPrice
1 – 9$398.00
10 – 24$378.10
25 – 49$358.20
50 – 74$338.30
75 – 99$328.35
100 +$318.40
SKU: TADREC059
Provided: Each
Range: ±300 mV, ±1.5 V, ±6 V, ±24 V, Auto
Electrical Isolation between Channels
Battery or USB Bus Power
Large Internal Memory

Notable Features

The MCR Series Multichannel Recorders are 4-channel battery operated data loggers.
Up to 4 units can be coupled together, making it possible to simultaneously measure and record up to 16 channels.
The MCR-4V is designed to measure voltage.
  • Part Number: TADREC059
  • Measurement Channel:
    Voltage
  • Input Impedance:
    Approx. 1.1 M?
  • Input Frequency:
    DC - 100 Hz
  • Measurement Range:
    ±300 mV ±1.5 V ±6 V ±24 V Auto
    Absolute Maximum Input Voltage: ±50 V
  • Measurement Accuracy:
    When the 50-60 Hz filter is ON varies with the Measurement Range as follows:
    ±300 mV : ±(0.3 % + 0.06 mV)
    ±1.5 V : ±(0.3 % + 0.3 mV)
    ±6 V : ±(0.3 % + 0.6 mV)
    ±24 V : ±(0.3 % + 2.4 mV)
    Auto : According to the range in use
  • Measurement Resolution:
    50-60 Hz Filter ONã: 0.01 mV
    50-60 Hz Filter OFF : 0.1 mV
  • Dimensions: H 120 mm x W 75 mm x D 32 mm
  • Recording Interval:
    2 5 10 20 50 100 200 500 ms.
    1 2 5 10 15 20 30 sec.
    1 2 5 10 15 20 30 60 min.
    (The minimum interval will depend on the number of channels measurement range and 50-60 Hz filter setting.)
  • Logging Capacity:
    When recording 1 channel : up to 480000 readings/ch
    When recording 2 channels : up to 240000 readings/ch
    When recording 3 channels : up to 160000 readings/ch
    When recording 4 channels : up to 120000 readings/ch
  • Battery:AA Alkaline Battery x 2 (AA Ni-MH batteries may also be used) USB Power (5 V 250 mA)
  • 4.5 to 150 Day Battery Life
  • Data Logger
  • USB Cable
  • Software
  • Card Slot Cover
  • Instruction Manual
  • Batteries
  • Expert Technical Support
