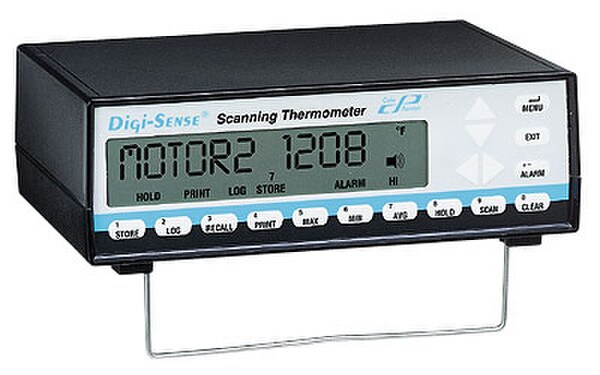

12 Channel Benchtop Thermocouple Scanner
This product has been Discontinued. Please View the Alternate Solution - GENREC005
Programmable scanner/logger. Accepts 12 t/c inputs with mini plugs. J-K-T-E-N-R-S-B thermocouples, Resolution 1.0 & 0.1, Serial communications. Device can store 4680 sets of readings. Free Windows Software. Power:120 Volt
Thermocouple type is individually selectable per channel. Datalogging feature automatically stores up to 4680 sets of readings. Download readings or stored data to your computer. Link up to 8 units together to expand channel capacity. Sequentially captures temperature data, allowing you to monitor and record process variations - ideal for statistical process control. Easy-to-use front panel MENU key lets you program datalogging and print intervals, scan rate, date and time, temperature scale (F, C, K, R), resolution (0.1 or 1.0), channels displayed, thermocouple type, and data output parameters. Each channel features HOLD, STORE, MAX and MIN (measures maximum and minimum values), RECALL and AVERAGE buttons. Calibrate each channel separately at either one or two points to minimize probe offset. Parameter setup and calibration offsets are stored in nonvolatile memory. Each scanner is factory calibrated to NIST-traceable standards.
Programmable scanner/logger. Accepts 12 t/c inputs with mini plugs. J-K-T-E-N-R-S-B thermocouples, Resolution 1.0 & 0.1, Serial communications. Device can store 4680 sets of readings. Free Windows Software. Power:120 Volt
Thermocouple type is individually selectable per channel. Datalogging feature automatically stores up to 4680 sets of readings. Download readings or stored data to your computer. Link up to 8 units together to expand channel capacity. Sequentially captures temperature data, allowing you to monitor and record process variations - ideal for statistical process control. Easy-to-use front panel MENU key lets you program datalogging and print intervals, scan rate, date and time, temperature scale (F, C, K, R), resolution (0.1 or 1.0), channels displayed, thermocouple type, and data output parameters. Each channel features HOLD, STORE, MAX and MIN (measures maximum and minimum values), RECALL and AVERAGE buttons. Calibrate each channel separately at either one or two points to minimize probe offset. Parameter setup and calibration offsets are stored in nonvolatile memory. Each scanner is factory calibrated to NIST-traceable standards.
- View Alternate Solution - GENREC005
- Part number BARREC002
- 120V Power
- Store 4680 sets of readings with time & date
- Display record and output temperature readings
- Field calibrate each probe separately
- Achieve accuracies of 0.1% of reading!
- Bidirectional RS-232 for setup
- PC datalogging capable
- Includes a real-time clock
- Nonvolatile memory
- Parallel printer output (benchtop only)
- Immune to RF interference
- 12 Channel Benchtop Scanner
- Instructions and Software
