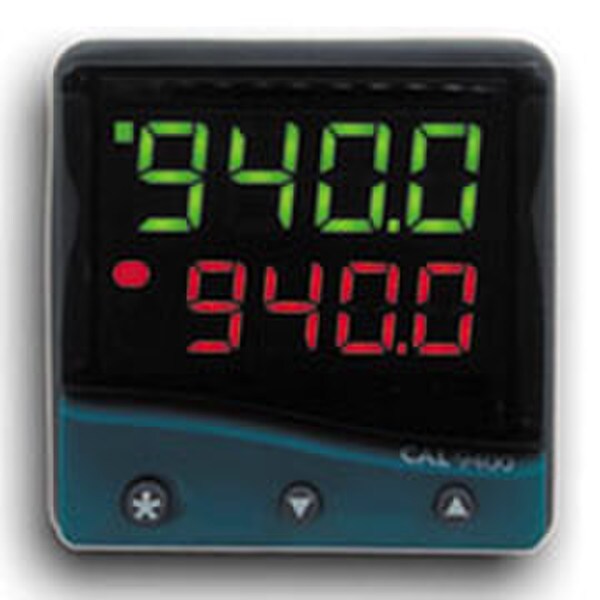

CAL 9400 Series Controller

(0)No Reviews yet
QuantityPrice
SKU: CALCON002
Provided: Each
Compact 1/16th DIN Autotune PID Temperature Controller
RS-485 communications board installed
Input type: Thermocouple (J, K, T, E, N, B, R, S, L), 100 Ω Pt RTD, 5 to 50 mV
Back
1/16 din Autotuning PID temperature controller.  2 Outputs: (SSd to switch a remote SSR 5Vdc +0/-15% 15mA non-isolated) / ( Relay form A/SPST contacts 2A/250 VAC resistive load), RS-485 communications board installed, 100-240VAC power supply.  Fully Programmable for Thermocouple, 2 Wire RTD & mV.  5 alarm modes, full scale, deviation and band.

CAL's latest range of controllers all provide the user with the benefits of an easy to use ˜autotune' programme (so that you don't need to understand PID to set-up a controller).

Each one has the option to add a communications board so that you can connect them to a PC.

The best way to use these controllers with a PC is with CAL's data-logging and chart-recorder software CALgrafix

Back
  • Part number CALCON002
  • Full PID autotuning temperature controllers
  • Bright LED displays
  • Dual-outputs
  • Alarms with 5 options
  • PID heat-cool operation
  • Ramp to set point
  • Sleeve mounting for easy maintenance
  • IP66 protection from front panel
  • 3-year warranty
  • Charting and logging software option
  • RS232/485 Modbus option
Back
  • (1) Instruction Manual
  • (1) CAL Controller
  •  RS-485 communications board installed
  • Expert Technical Support
