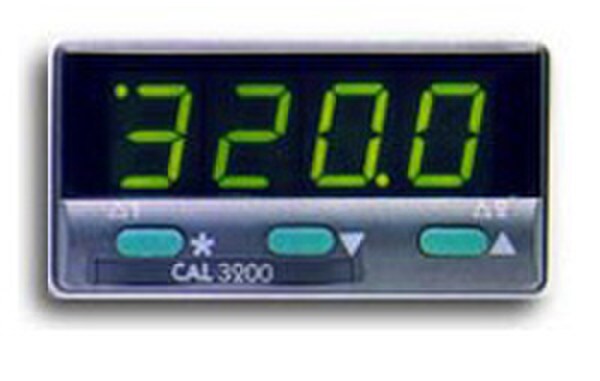

CAL 3200 Series Controller

(0)No Reviews yet
QuantityPrice
SKU: CALCON057
Provided: Each
Compact 1/32nd DIN Autotune PID Temperature Controller
The CAL 3200 Series Controller is an easy-to-use, inexpensive, and reliable temperature controller.
Special Order: 24VDC Power Supply

Notable Features

The CAL Controls 3200 Series was the world's first 1/32 DIN (24mm x 48mm) temperature controller launched in 1992. A key feature of the CAL Controls 3200 Series is the standard autotune functionality. Autotune ˜teaches' the controller the main characteristics of the process. For best results, run Autotune with the usual set-point temperature under normal load conditions. Autotune ˜learns' by cycling the output on and off. The results are measured and used to calculate optimum PID values, which are automatically entered in the controller memory. Standard inputs to the CAL Controls 3200 Series are 9 types of thermocouples as well as RTD-2/Pt100 2-wire resistance thermometers. Output devices include the solid state relay drive and miniature power relay.

The CAL Controls 3200 Series is still in full production today. For the very latest 1/32 DIN controller, see the CAL Controls 3300 which uses the same program menus but has the benefit of communications and latest aesthetic designs.

  • Part number CALCON057
  • Ultra-compact size: 24mm x 48mm
  • 24 VDC Power Supply
  • Autotune PID for easy set-up
  • Dual-output: 2A relay plus SSR drive
  • IP65/ Nema 4X sealed fascia
  • Bright LED digits display to 1° or 0.1° in °C or °F
  • Positive feel buttons
  • 5 alarm modes
  • 9 thermocouples RTD/PT100 inputs
  • Removable rear screw terminal block
  • CAL 3200 Series Controller
  • 24VDC Power Supply
  • Instructions
  • Expert Technical Support
