  • CMKREC008: Wireless Precision RTD Temperature Transmitter RF516

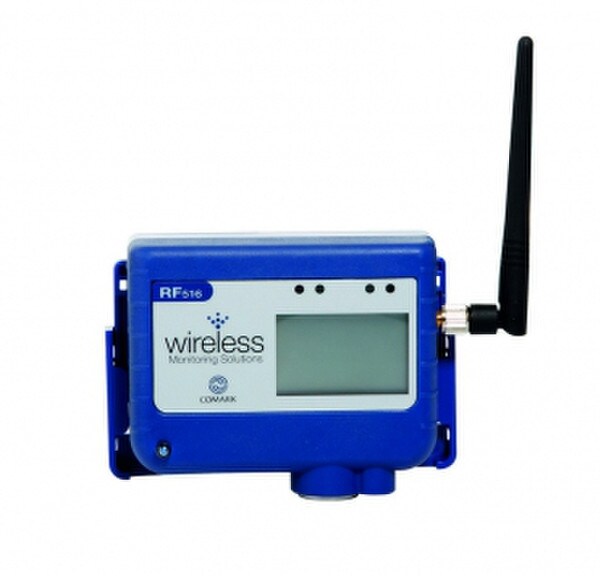

Wireless Precision RTD Temperature Transmitter

(0)No Reviews yet
Provided: Each
-328°~ 752°F (-200° ~ 400°C)

Notable Features

Integral temperature sensor and connectors for one external Pt100 temperature sensor and an external door sensor. Contains Pt100 temperature sensor for precision readings in sensitive applications. LCD screen used for local temperature display at point of measurement. LEDs allow checks of active/alarm indication. Scales include °C/°F. BioCote protected surfaces inhibit growth of bacteria, mold and fungi, which provides an extra line of defense in high-risk environments. High gain antenna available.

The CMKREC008/RF516 Transmitter Communicates with RF500 Gateway which collects all data and sends out email / text message alerts

  • Part number: CMKREC008
  • Integral Thermistor Sensor: -22°F to +158°F / -30°C to +70°C
  • External Pt100 Sensor: -328°F to +752°F / -200°C to +400°C
  • Scales: °F °C K
  • Temperature Internal Thermistor: 32°F to 158°F +/- 0.9°F / 0°C to 70°C
  • Temperature Thermistor Full Range: +/- 1.8°F / +/- 1°C
  • Temperature Pt100 - Full range between two calibration points: +/- 0.18°F / +/- 0.1°C (system including probe)
  • Temperature Pt100 (full range): +/- 0.9°F / +/- 0.5°C
  • Pt100 Connection Type: 4-Wire
  • Pt100 Sensor Drive Current: 400µA Nominal
  • Resolution Temperature (Thermistor): 0.18°F / 0.1°C
  • Resolution Temperature (Pt100): 0.03°F / 0.015°C
  • Door Sensor: 7.5 seconds
  • Storage Temperature: -40°F to +185°F / -40°C to +85°C
  • RF Frequency: 2.4 GHz using IEEE 802.15.4
  • Standard Antenna: external removable omni-directional with pivot. Length: 3.54 inches from pivot
  • High-Gain Antenna (Optional): Length 9.25 inches from pivot
  • Radio Range: Typically 164 ft. indoors
  • Clock Accuracy: 20ppm (1 minute/month) at 77°F/25°C
  • Logging Memory: 32000 records
  • Logging Frequency: Programmable between 1 minute and 60 minutes
  • Monitoring Frequency: 1 minute
  • LEDs: Red (Warning) / Green (Active)
  • Case Material: Over Moulded food safe clear Polycarbonate with BioCote antimicrobial
  • Environmental Protection: Case enclosure designed to meet IP67 BS EN 60529
  • Battery Type: Replaceable Lithium 'C' Cell Saft LSH14 Light
  • Battery Life: Up to three (3) years
  • Dimensions: L 5.28" xW 3.27" x D 1.34"
  • Weight: 270g
  • Wireless Precision RTD Temperature Transmitter RF516
  • Antenna
  • Battery
  • Technical Support
  • (Sensors Sold Separately )
