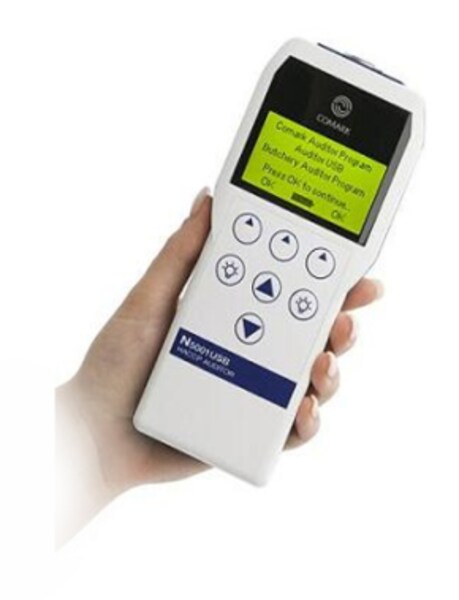

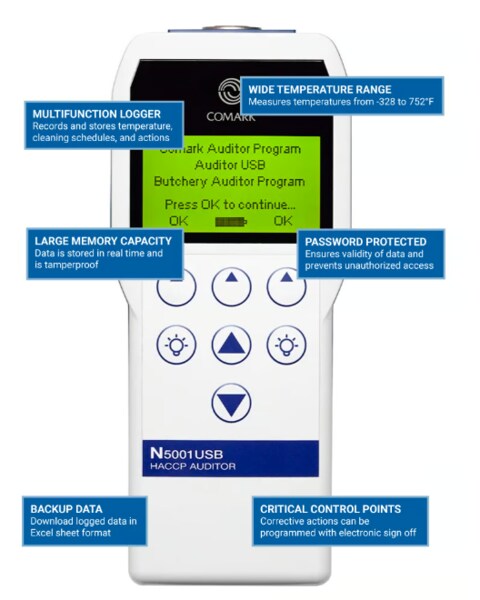

Comark N5001USB HACCP Auditor
The N5001USB HACCP Auditor is used in HACCP, due diligence, and health and safety systems to log, monitor, and manage data. Flexible recording and reporting throughout the supply chain.
The N5001USB HACCP Auditor can be fully programmed using Auditor software to provide the flexibility and recording functions of palm handheld organizers.
It can be used for many tasks and safety checks, including temperature monitoring, anywhere from manufacture and processing to delivery, especially in the food and pharmaceutical industries.
- Provides effective due diligence records
- Program virtually any critical control check to suit your HACCP or due diligence plan
- Easy and efficient data analysis
- Problems can be identified quickly
- Minimizes risk of human error
- Elimination of paper records
- Full security with controlled authorized user access
- Food-safe ABS case, dust and waterproof to IP67 standards
- Wide range of type K and T thermocouple temperature probes
- Low running costs with over 500 hours of use from one set of batteries
| Type of Sensor: | Type "K" or "T" Thermocouple |
| Temperature Sensing Range: | "K" Range: -200°C ~ +700°C / -328°F ~ +1292°F |
| Operating Temperature Range: | -20°C ~ +50°C / -4°F ~ +122°F |
| Temperature Accuracy: | ±0.2% of reading, ±0.2°C, full range |
| Temperature Resolution: | 0.1° |
| Temperature Scale: | °F and °C |
| Min/Max Memory: | Holds About 3,000 Readings |
| Dimensions: | L 183mm x W 79mm x D 31mm |
| Weight: | 270g / 0.6 lbs |
| Calibration Available: | Please Call to Discuss |
| Power: | 2 X 1.5V AA IEC LR6 Alkaline |
| Battery Life: | 500 hours , back light off |
| IP Rating: | IP67, BS EN 60529, IEC 529 |
| Exportable Data: | Yes |
| Display: | LCD |
| Requires Software: | YES |
| Software Type: | Rquires Microsoft Windows 7 or Higher |
| Network Connectivity: | USB |
The N5001USB HACCP Auditor is an advanced electronic tool ruggedly built for use in a busy kitchen environment. And just as people service and maintain their cars, the Auditor must be taken care of regularly to ensure long-lasting service. Sometimes, due to network or Windows updates, there can be glitches in how an instrument behaves. But often there are quick, simple fixes you can perform yourself.
Follow these basic steps to ensure long trouble-free operation:
- Keep the instrument and the rubber boot clean. Use only a damp cloth with little or no detergent.
- Keep your Auditor and probe clean with a clean damp towel, not soaking wet. Be careful not to stretch the probe cable when using OR cleaning it.
- When removing and replacing the battery cover, take care to keep the screw washer that retains the screw to the cover in place. DO NOT OVER-TIGHTEN THE SCREW WHEN REPLACING THE COVER.
- Avoid allowing food or other debris in the USB port or the Lumberg Probe port. This can cause the issues with proper USB communication with the Auditor software, and proper probe sensor readings. This is also not covered under warranty.
- Take great care when inserting and removing the USB cable from the Auditor USB port. USB ports are a fragile part of any electronic equipment and should be treated as such. Abused USB Ports are not covered under the warranty.
- Always download the Auditor to the PC at least once per day.
- Caution: Performing a hard reset will cause a loss of data.
- Change the batteries regularly, once per month if not being replaced more frequently than that. Always replace both batteries at the same time and, always use good quality Alkaline batteries. When changing the batteries avoid pressing buttons on the front, and try placing the “positive” end in first. Comark does not recommend either rechargeable batteries or Zinc Chloride.
- If the unit refuses to download or communicate then stop using it immediately and perform the checks listed below to diagnose the problem. If in doubt contact your IT Department or Comark.
