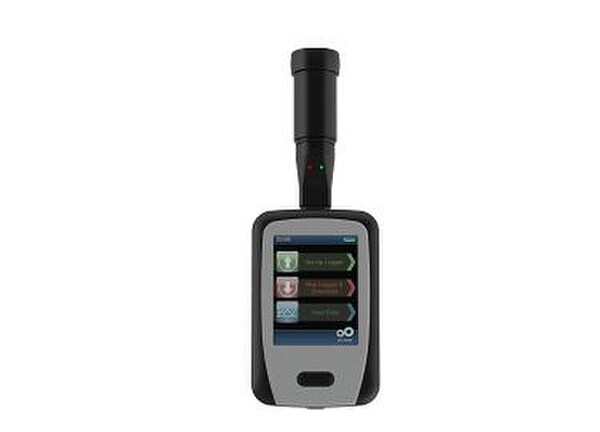

TIPTEMP USB DataPad
The New TIPTEMP DataPad ( about the size of the handheld iphone® ) allows users of the TIPTEMP USB data loggers to configure their units and download data and view logging results on-the-spot rather than removing the logger from the environment being measured and taking it to their PC. This allows continual logging with shorter breaks in data collection, less travel for the user, on-site data collection in graph, legend and summary format and the ability for users to reconfigure loggers in "the field".
The time savings is tremendous! No more collecting loggers and taking them back to a desktop PC for download and restart.
The logger is connected to the DataPad via a standard USB port at the top of the viewer. Once connected, the user is guided through a simple touchscreen menu with options to Set-Up Logger, Stop Logger & Download and View Data. On-screen instructions follow the same structure as the USB software for PC currently provided with each data logger.
Data from up to 100 loggers can be viewed on the DataPad, with data from a further 400 units stored on the unit at any one time. Data can be transferred to a PC or Mac using a micro USB cable supplied with the unit. Once uploaded, data is saved in comma separated variable (csv) format, making it suitable for import into spreadsheet packages such as Microsoft Excel or graphed on a PC using TIPTEMP's USB software.
The TIPTEMP DataPad is compatible with all TIPTEMP USB Temperature, Humidity and Thermocouple Data Loggers
The time savings is tremendous! No more collecting loggers and taking them back to a desktop PC for download and restart.
The logger is connected to the DataPad via a standard USB port at the top of the viewer. Once connected, the user is guided through a simple touchscreen menu with options to Set-Up Logger, Stop Logger & Download and View Data. On-screen instructions follow the same structure as the USB software for PC currently provided with each data logger.
Data from up to 100 loggers can be viewed on the DataPad, with data from a further 400 units stored on the unit at any one time. Data can be transferred to a PC or Mac using a micro USB cable supplied with the unit. Once uploaded, data is saved in comma separated variable (csv) format, making it suitable for import into spreadsheet packages such as Microsoft Excel or graphed on a PC using TIPTEMP's USB software.
The TIPTEMP DataPad is compatible with all TIPTEMP USB Temperature, Humidity and Thermocouple Data Loggers
- Part number LASREC011
- Instantly View downloaded data with general trend and summary screens
- Collects and stores data from at least 500 data recorders.
- Touch screen interface for navigation of menus
- Allows full or quick set-up of compatible USB data recorders
- 2.8" full color TFT display
- Stored data can be transferred to a PC or MAC
- Integral rechargeable lithium battery provides up to 8 hours of use (nominal)
- Only Compatible with LASREC001, LASREC002, LASREC006, LASREC007, LASREC009, LASREC010, LASREC012, LASREC013, LASREC026, and LASREC028
- EL-USB Data Pad
- Instructions
- Rechargeable Lithium Battery
- Expert Technical Support
