  • LASREC027: Thermocouple Data Logger with Touch Screen Display

Thermocouple Logger & Sensor Probe

(0)No Reviews yet
Provided: Each
-454 ~ 2372°F (-270 ~ 1300°C)
Audible Alarms via built-in Sounder
Compatible with Thermocouples  J K N & T
Rechargeable Battery via USB connection
Logging rate User selectable between 1 second & 12 hours
Interchangeable Probes

Notable Features

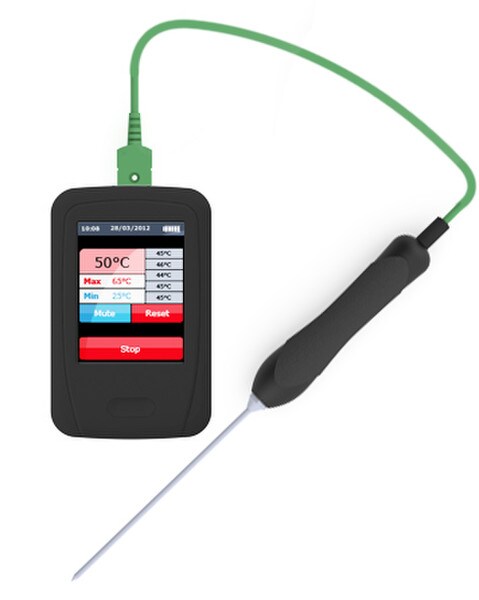

This robust easy to use handheld device takes and records temperature readings via the attached k-type probe that is supplied with the unit. A large touch screen, colour display indicates temperature, maximum and minimum readings and will produce a graph of the data.

It has two functions ˜Data Logging™ and ˜Spot Measurement™;

  1. When in ˜Data Logging™ mode it can be set up and left to take temperature readings at pre-determined intervals for a desired length of time. All readings are saved to a file with a date and time stamp in CSV format for up to 65,536 readings.

  2. When in ˜Spot Measurement™ mode the unit can be used as a thermometer to capture one-off temperature readings displayed on screen. This can be repeated for up to 65,536 readings per file.

This data can then be downloaded to PC via a USB connection and opened with Microsoft Excel® or our EasyLog software which is available for free on this page.

The unit is compatible with any J, K, N and T type thermocouple probes. The protective boot can be removed for cleaning and is dishwasher safe.

  • Part number LASREC027
  • Temp Range: -100 to +9999°C (-148 to +18030°F) depending on thermocouple type
  • Compatible with Thermocouples Type J K N & T
  • High & Low Alarms
  • 2.8" color touch screen
  • Can log over 65500 readings per file
  • Logging rate User selectable between 1 second & 12 hours
  • Capacity to store up to 100 log files
  • Temperature accuracy ±1.5°C (probe dependent)
  • Rated for IP66
  • Selectable Time (12 or 24 hour) and Date (dd/mm/yyyy or mm/dd/yyyy)
  • Selectable file extensions (.txt or .csv)
  • Audible Alarms via built-in Sounder
  • Downloadable data via USB
  • Internal rechargeable lithium polymer battery
  • Date & Time Function
  • Removable protective boot for increased durability
  • Typical Operating Time (On one charge): 24 hours
  • FREE Windows Software Included
  • Thermocouple Data Logger & Handheld Probe
  • Free Software (Download)
  • Rechargeable Battery
  • Micro USB "Type B" cable supplied
  • Expert Technical Support
