  • LASREC064: MOTE Wireless Thermocouple Temperature Data Logger

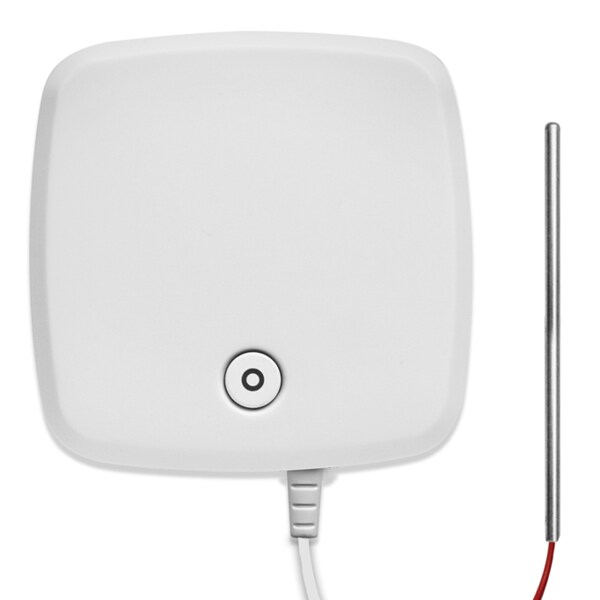

MOTE Wireless Thermocouple Data Logger

(0)No Reviews yet
1 – 9$199.49
10 – 24$189.51
25 – 49$179.54
50 – 74$169.56
75 – 99$164.58
100 +$159.59
Provided: Each
Temp Range: -328 ~ 2,372F (200 ~ 1,300C)
Quick, wireless App based configuration
Add first logger to your cloud account for free (minimal charges for additional devices)
Suitable for indoor and outdoor applications

Notable Features

The MOTE Wireless Thermocouple Temperature Data Logger is a Cloud-enabled, wireless data logger, designed to monitor temperature in a large range of indoor and outdoor applications. EasyLog Cloud harnesses the power of IoT to automate data logging and alert notifications - perfect for both compact systems with just a few sensor requirements to corporate solutions with thousands of devices around the globe.
Temperature Sensing Range: -328 ~ 2,372°F (200 ~ 1,300°C)
Temperature Accuracy: +/- 2°F (+/- 1°C) typical
Temperature Resolution: 0.1°
Temperature Scale: °F or °C
Sensor Wire Length: 59" (1500mm)
Min/Max Memory: Yes
Dimensions: 3.7 x 3.7 x 1.3" (93 x 93 x 32mm)
Calibration Available: Yes (purchased separately)
Battery Life: 2 Years (with apropriate settings and operating environment)
Battery Backup: Yes - Must Purchase Option Power Supply
IP Rating: 67
Special Notes: *Refer to Specs Document for Measurement Range specific to Thermocouple Type
Exportable Data: Yes
Display: LED
Software Type: App (Google Play or App Store)
Network Connectivity: WiFi
WIFI Network Compatibility: IEEE 802.11bgn (2.4GHz) compliant, supports WEP, WPA/WPA2 encryption and enterprise networks (PEAP, TTLS, FAST)
Plug Size: Mini
  • (1) MOTE Wireless Thermocouple Data Logger
  • (1) Wall-Mount
  • (4) AA 1.5V Batteries
  • (1) K Type Thermocouple Sensor, 59" Long Wire
  1. Connect Probe(s)
  2. Install Batteries
  3. In the EasyLog Cloud App, go to the menu, select Set up Device and follow the on-screen instructions
  4. Install MOTE to place of application
