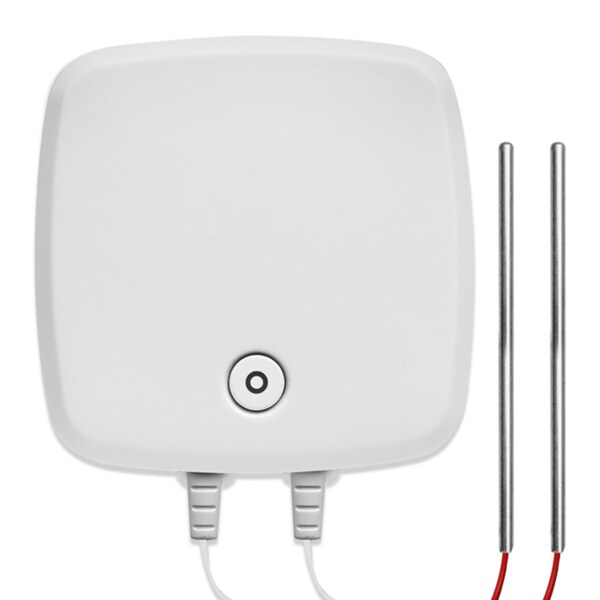

MOTE Wireless Dual Thermocouple Data Logger
The MOTE Wireless Dual Thermocouple Temperature Data Logger is a Cloud-enabled, wireless data logger, designed to monitor temperature in a large range of indoor and outdoor applications. EasyLog Cloud harnesses the power of IoT to automate data logging and alert notifications - perfect for both compact systems with just a few sensor requirements to corporate solutions with thousands of devices around the globe.
| Temperature Sensing Range: | -328 ~ 2,372°F (200 ~ 1,300°C) |
| Temperature Accuracy: | +/- 2°F (+/- 1°C) typical |
| Temperature Resolution: | 0.1° |
| Temperature Scale: | °F or °C |
| Sensor Wire Length: | 59" (1500mm) |
| Min/Max Memory: | Yes |
| Dimensions: | 3.7 x 3.7 x 1.3" (93 x 93 x 32mm) |
| Calibration Available: | Yes (purchased separately) |
| Battery Life: | 2 Years (with apropriate settings and operating environment) |
| Battery Backup: | Yes - Must Purchase Option Power Supply |
| IP Rating: | 67 |
| Special Notes: | *Refer to Specs Document for Measurement Range specific to Thermocouple Type |
| Exportable Data: | Yes |
| Display: | LED |
| Software Type: | App (Google Play or App Store) |
| Network Connectivity: | WiFi |
| WIFI Network Compatibility: | IEEE 802.11bgn (2.4GHz) compliant, supports WEP, WPA/WPA2 encryption and enterprise networks (PEAP, TTLS, FAST) |
| Plug Size: | Mini |
- (1) MOTE Wireless Dual Thermocouple Data Logger
- (1) Wall-Mount
- (4) AA 1.5V Batteries
- (2) K Type Thermocouple Sensor, 59" Long Wire ( limited temperature range )
- Connect Probe(s)
- Install Batteries
- In the EasyLog Cloud App, go to the menu, select Set up Device and follow the on-screen instructions
- Install MOTE to place of application
