19" Rack Mount Strip-Jack-Panel

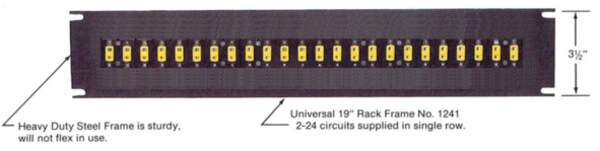

Universal 19” rack accepts 2 to 24 circuits of 1032 strip panels less than 24 circuits are supplied with filler sections.

Circuits can be added in the field without changing the frame.

The 19-inch rack frame is made of sturdy 10 gauge steel that will not flex in use. The standard frame is flat black. High temp frame has a bright silver finish.

Thermocouple type and circuit numbers are marked on the face of the strip panel with corresponding circuit numbers and polarity identification on the back. Strip panels are numbered starting from “1” unless specified otherwise.

Strip panels are molded of glass-filled thermoset compounds (which will not melt) For high strength and dependability. The color-coded panels will withstand ambient temperatures to 400°F (205°C) continuous and 500°F (260°C) intermittent.

Inserts are spring-loaded collet type to assure positive full contact with the negative insert larger making it virtually impossible to mismate.

For corrosive application, gold-plated contacts are available. Caution system errors can result from the use of plated contacts if significant thermal gradients exist at the connection.
