1.25" Large Display Thermometer (4 Digit Model)

(0)No Reviews yet
Provided: Each
-328°F ~ 2300°F (-200°C ~ 1260°C)
Programmable Inputs: 4-20 mA ± 10V TC & RTD
Free Modbus® RTU Protocol & LabVIEW„¢ Driver
Free MeterView Software Download
Sunlight Readable Display

Notable Features

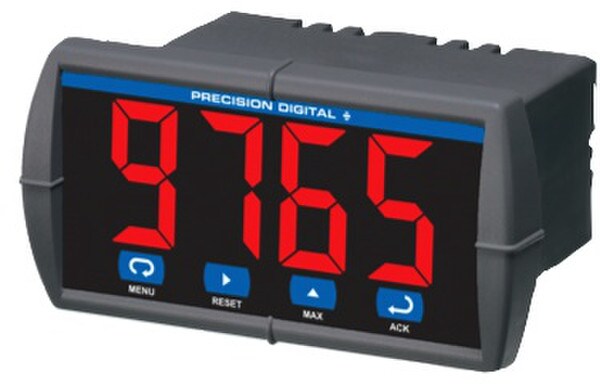

The Model PREDPM003 Trident digital panel meter is one of the most versatile digital panel meters on the market and will satisfy a wide variety of process applications. The Trident can be field programmed to accept process voltage (0-5V, 1-5V, etc) and current (4-20 mA) inputs, 100 Ohm RTDs, and the four most common thermocouples. It is housed in a shallow-depth, 1/8 DIN enclosure that features a NEMA 4X front panel and convenient mounting hardware. There are two power options for the Trident: 85 to 265 VAC or 12-36 VDC and it can provide 24 VDC to power the transmitter if needed. Programming and setup can be performed with the four front panel pushbuttons, free MeterView software, or using the Copy function.
  • Item Number: PREDPM003
  • 4-20 mA ± 10 V TC & RTD Inputs
  • NEMA 4X IP65 Front
  • Shallow Depth Case 3.6" Behind Panel
  • Universal Power Supply 85-265 VAC
  • Two Relays Option with Alternation & Time Delays
  • 4-20 mA Analog Output Option
  • 24 VDC @ 200 mA Transmitter Power Option
  • RS-232 RS-485 Serial Communication Options
  • Free Modbus® RTU Protocol & LabVIEW„¢ Driver
  • Sunlight Readable Display
  • Free MeterView Software Download
  • Additional Options Available - Please Call!
  • PREDPM003: Trident X2 Process & Temperature Meter;
  • 1.25" Display thermometer • 1/8 Din Panel Mount
  • Power: 85-265 VAC, 90-265VDC
  • No Outputs
  • No Transmitter Power
  • 3 Year Warranty
  • Instructions
  • Expert Technical Support
