Single-Use Cryogenic Temperature Recorder
We're not sure when this will be available again.
Dry ice shipments present a unique set of challenges especially when maintaining temperature control is a critical factor. The Logic Dry Ice delivers a solution that will allow you to know if temperatures have remained in an acceptable range.

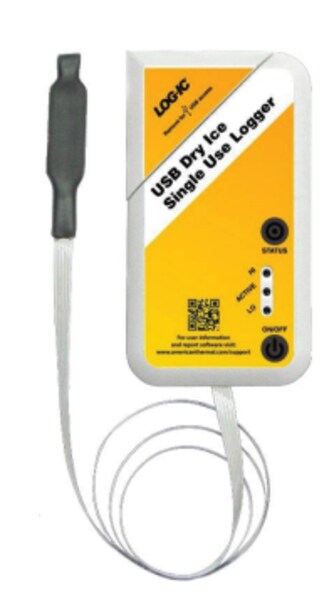

The durable probe allows you to monitor the temperature inside a container while the Logic remains outside of the packaging. A thin ribbon cable allows the container to remain tightly closed without risk of compromising package quality but temperature data can be collected at any point in the cold chain either through USB or wireless interface.
Logic is a cost-effective cold chain monitoring product that ensures you know if your product has been exposed to unacceptable temperatures that could negatively affect product quality, safety or shelf life. With Logic, you have the information you need to make changes to your processes which can drive a reduction in product loss during storage and/or shipping and handling, and improve your bottom line.
Type of Sensor: | Thermistor |
Temperature Sensing Range: | -112°F ~ 167°F (-80°C ~ 75°C) |
Temperature Accuracy: | +/- 6°F (+/- 3°C) typical |
Temperature Resolution: | 0.1° |
Temperature Scale: | °F or °C |
Sensor Dimensions: | 2.28" x 2.28" x 0.07" |
Min/Max Memory: | Yes |
Dimensions: | 2.28" x 2.28" x 0.07" |
Weight: | 19.5 g (0.043 lbs) |
Calibration Available: | Yes (included) |
Battery Life: | Three-year run life |
IP Rating: | Water-resistant (NEMA 4) food-grade packaging |
Storage Conditions: | NEMA 4 |
Number of Sensors: | One |
Data Points: | 4000 logged data points/ 16 million histogram temperature readings |
Exportable Data: | Yes |
Recording Rate: | One Sample Per Minute |
Display: | None |
Requires Software: | Yes |
Software Type: | Windows 10, 8, 7 (32-bit and 64-Bit Versions) |
Network Connectivity: | N/A |
- Logic Dry Ice with External Sensor
- Free Software Download
- Battery
- Instructions
- Expert Technical Support
Powerful Information but Easy to Use & Train
Multiple data download methods and free software included for end-of-journey reporting Temperature data can be downloaded using multiple methods: a desktop or handheld reader or direct connection to a computer. Once loaded onto the PC, the free Logic Report Software provides at-a-glance interpretation of when excursions have occurred and allows you to generate summary reports, manage tag programming, view tag status, and set alerts.
