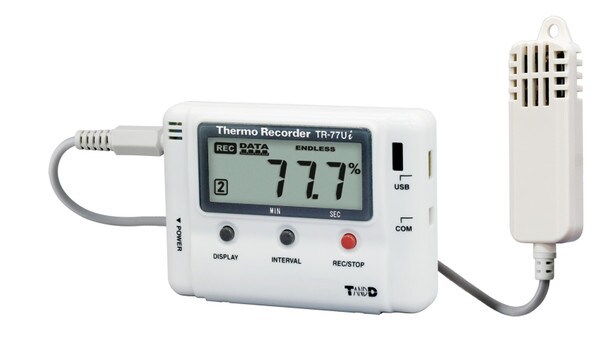

TandD TR-77Ui High Precision Wide Range Temperature/Humidity Data Logger
Replaced With TADREC028
We Don't Know When This Will Be Available Again
The TR-77Ui is our innovative temperature and humidity data logger designed to measure and record in a wider range with more precision than ever before. It reaches the high measurement accuracy of ±2.5%RH and can measure and record in the range of 0 to 99%RH (at temperatures from -30 to 80°C).
The product is an all-in-one package that includes the data logger unit, sensor and software. Simply by connecting to a PC via a USB connection and carrying out a few easy steps, the measurement and recording of data can be started.
Not only can recorded data be easily downloaded to a PC via USB communication, but it can also be collected from data loggers via infra-red communication to our Data Collector TR-57DCi (sold separately). The TR-57DCi enables the user to gather and check recorded data on the spot without having to manually gather the data loggers.
- Part Number: TADREC056
- Measurement Channel:
Temperature
Humidity - Unit of Measurement:
°C
%RH - Measurement Range:
-30 to 80°C
0 to 99%RH - Temperature Measurement Accuracy:
±0.3°C [10 to 40°C]
±0.5°C [all other temperatures] - Humidity Measurement Accuracy:
±2.5%RH [at 25°C and 10% to 85%RH]
±4.0%RH [at 25°C and 0% to 10%RH or 85% to 99%RH]
Add ±0.1%RH/°C (When at other than 25°C add to the accuracy noted above) - Humidity Hysteresis: ±1.5%RH or lower
- Measurement Resolution:
0.1°C
0.1%RH - Temperature Sensor Type:
Platinum Resistance Sensor
Electrostatic Capacitance Type Sensor - Logging Capacity:
8000 data sets - Battery
AA Alkaline battery - Dimensions: 55mm x 78mm x 18mm (2.2" x 3.1" x 0.71")
- Selectable recording intervals from 1 second to 60 min
- 10 Months Battery Life
- Data Logger
- Instruction Manual
- Batteries
- Technical Support
