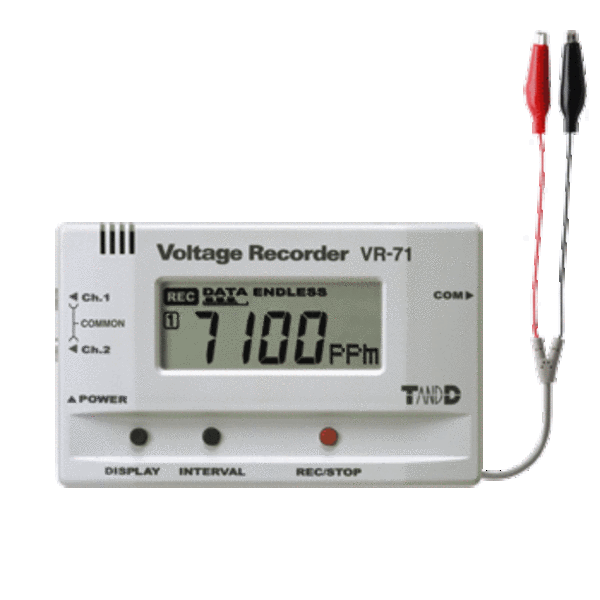

TandD VR-71 2 Channel Voltage Logger
The VR-71 data logger measures and records voltage signals within a measurement
range of DC(+/-)15V.
It can record common signals, such as 1-5V/4-20mA as well as output signals from a variety of sensors.
The most impressive feature is the software function that allows the create of your own dot matrix patterns for unit display and then change the recorded voltage signal into the desired unit and display accordingly to match your measurements.
range of DC(+/-)15V.
It can record common signals, such as 1-5V/4-20mA as well as output signals from a variety of sensors.
The most impressive feature is the software function that allows the create of your own dot matrix patterns for unit display and then change the recorded voltage signal into the desired unit and display accordingly to match your measurements.
General Specifications Measurement Channels Voltage 2ch Measurement Range Range: ±1,2,6,15V Auto Range / Fixed Range Accuracy ±0.5%+5dgt. LCD Display Measurements, Battery Life Warning, etc. Logging Capacity 8,000 data sets Recording Intervals 20 choices from 20 msec to 60 min Recording Mode Endless/Onetime Comm Interfaces Serial Power AAA Alkaline Battery x 2 Operating Environment Temperature: 0 to 50°C
Humidity: 90%RH or less (no condensation)Dimensions H:55mm × W:88mm × D:24mm Waterproof Capacity None Battery Life About 5 to 9 months Accessories Input Cable x2, Serial Communication Cable, Others
- Data Logger
- Input Cable
- Serial Communication Cable
- Software
- Instruction Manual
- (2) AAA Batteries
- Expert Technical Support
