Single Change Thermal Paint @ 630°C

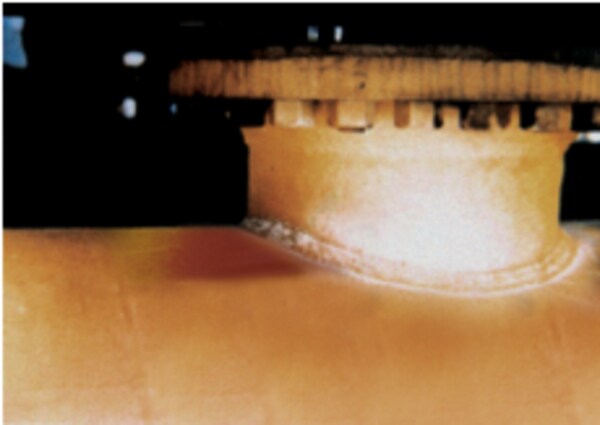

Single Change Thermal Paints provide clear indication when temperature have been exceeded, proving to be an extremely useful aid to the industrial, chemical and petrochemical markets. An ideal tool for monitoring temperature on refractory lined vessels.Showing arise in surface temperature where the refractory linings have broken down.
- Accuracy +/- 5%
- No primer necessary for most surfaces
- Resistant to oil, steam and water
- Ideal for producing thermal surveys
- 10 Minute Reaction time
- A strong and clear color contrast
- Requires no additives
- (1) Liter of SC630 Paint
PAINT TYPE SINGLE CHANGE PAINT
INITIALCOLOR: RED Changes to WHITE
THE ESTIMATED HIGHEST TEMPERATURE THE PAINT CAN BE SUBJECTED TO WITHOUT A COLOUR CHANGE 425C /797F
Drying Time 1st Coat touch dry in 15 -50 minutes. Allow a min. of 20 minutes before test. Weathering This paint has good weathering resistance and may be used in arduous environments.
APPLICATION DETAILS Apply to a blast cleaned and de-greased surface, no primer is necessary. Apply one coat, allowing to touch dry to 15-30 minutes. Best thermal mapping is achieved by an even coat of paint. The preferred application method is spraying. The paint may be thinned to spraying viscosity by the further addition of thinners. Removal of the paint can be achieved by using solvents or an abrasive disc.
COLOUR CHANGES: Information in this Product Data Sheet is compiled from our general experience and data obtained from various technical publications. While we believe that the information provided herein is accurate at the date hereof, no responsibility for its completeness or accuracy can be assumed. Tests at TMC are carried out under controlled laboratory conditions. The user should test and verify the paint works in their particular application. Information is given in good faith, but without commitment as conditions vary in every case. The information is provided solely for consideration, investigation, and verification by the user. TMC does not accept any liability for any loss, damage, or injury resulting from its use (except as required by law).
Please refer to the Material Safety Data Sheet before using products to ensure safe handling.
