Blood TRANSIT & STORAGE Temperature Label

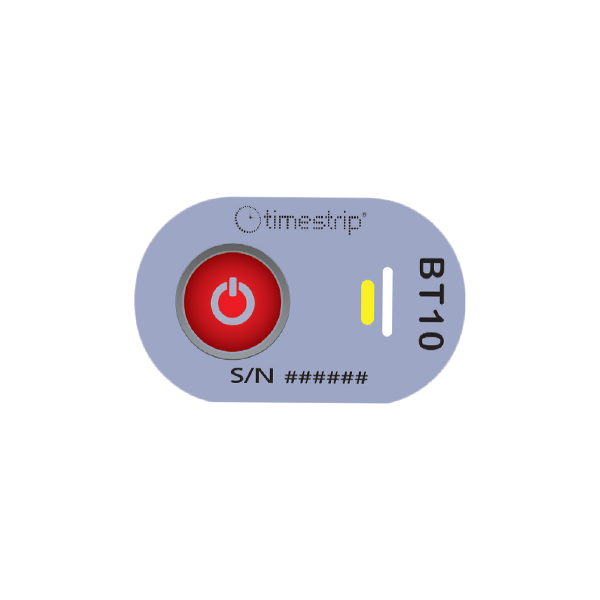

The Blood Temp Indicator is a member of the WarmMark temperature indicator family. It has been specifically designed to correlate to the core temperature of a blood bag. When the core temperature of the bag gets to 10°C, the breach window will turn from white to blue, and you know the blood bag needs to be discarded.
The Blood Temp indicator is a simple solution that increases blood safety, decreases blood waste and provides proof that your blood has been stored, transported and reissued in accordance with applicable regulatory standards
The Blood Temp indicator is a simple solution that increases blood safety, decreases blood waste and provides proof that your blood has been stored, transported and reissued in accordance with applicable regulatory standards
Type of Sensor: | Chemical / Time Temperature |
Temperature Sensing Range: | 50°F (10°C) |
Temperature Accuracy: | +/- 2°F (+/- 1°C) typical |
Temperature Scale: | °F and °C |
Dimensions: | 53mm x 85mm |
Weight: | .00125 |
Calibration Available: | Certificate of Conformance ( $ Extra ) |
Adhesive: | Yes |
Storage Conditions: | Store in a cool dry place |
Color Change: | Permanent |
Shelf Life: | 1 Year from Date of Manufacture |
Adhesive Type: | 3M |
- Blood Temp Indicator
- Instructions
- Expert Technical Support
- Push the Button: Firmly squeeze the activation button until you feel a pop, then release.
- Verify Activation: Arming window will change from yellow to dark green immediately.Dark green means activated. If not, go back to step 1 and repeat.

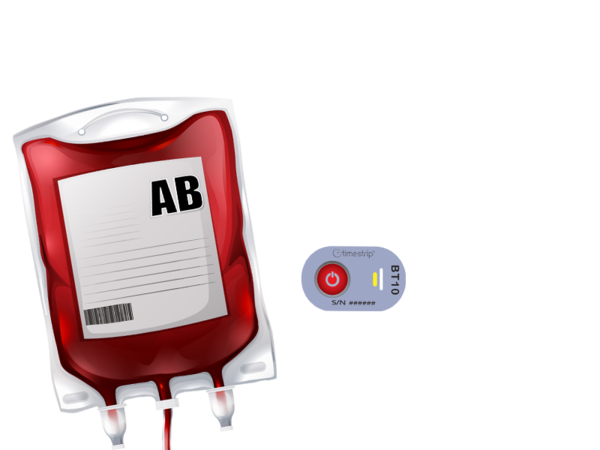

- Apply to Blood Bag: Remove adhesive liner and adhere activated indicator to the lower third of the blood bag.
