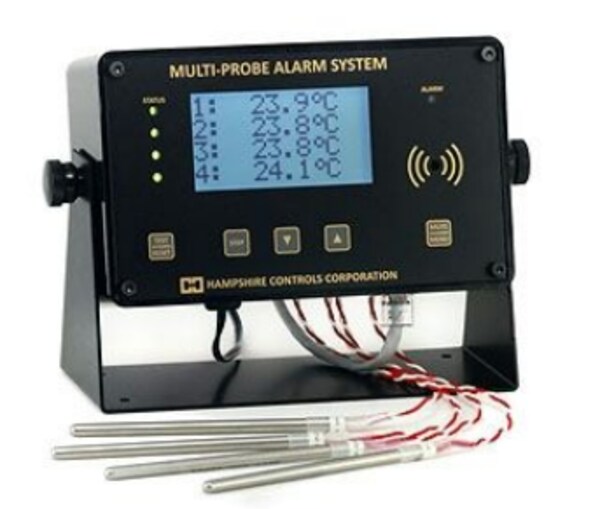

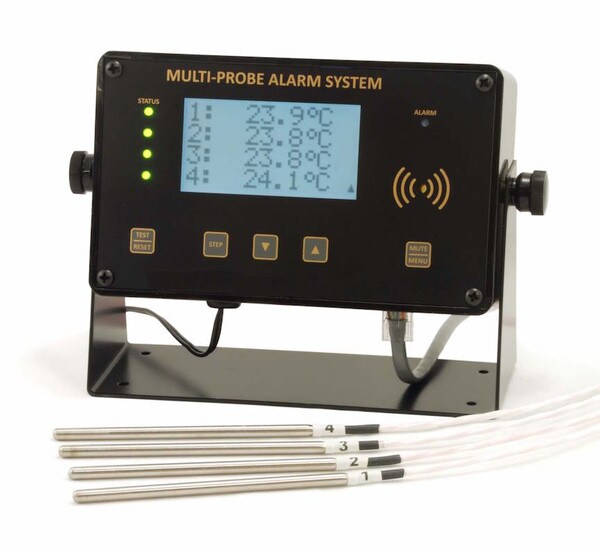

2 ~ 4 Channel Alarm Monitoring System

(0)No Reviews yet
QuantityPrice
SKU: HAMALM004
Provided: Each
Range: -100°C ~ 100°C
Audible Alarm, Contact Output, Battery Backup, Expands to 4 Inputs

PLEASE CALL OUR THERMAL ADVISORS FOR YOUR CUSTOMIZED QUOTE TO DETERMINE THE NUMBER OF CHANNELS

Supplied with 100Ω RTD High Accuracy Sensors

ALSO AVAILABLE "T" or "K" THERMOCOUPLE INPUT

Notable Features

2 Channels Standard,  ( expands to 4 channels ) 100Ω RTD Stand-alone series monitors, alarms and notifies you based on condition data that you have programmed into the system (using up to 4 probes of various types). It includes a relay output per probe, a battery back-up system, setting of min./max. environmental monitoring and alarm conditions, an e-mail, phone/pager alarm notification system and can be operated with network and land-line telephone hook-up.
Temperature Sensing Range: -148 ~ 212°F (-100 ~ 100°C)
Temperature Accuracy: +/- 1°F (+/- 0.5°C) typical
Temperature Resolution: 0.1°
Temperature Scale: °F and °C
Calibration Available: Yes (included)
Battery Backup: Yes
Number of Sensors: 2 (Expandable to 4)
Display: LCD
Network Connectivity: Ethernet
  • Multi-Channel Temperature Monitor Alarm
  • (2 to 4 ) RTD Temperature Sensors with 10Ft. extension cable ¼" x 4" SS Sheath.
  • Battery Back-Up
  • Relay Output
  • Wall Mounting Bracket
  • Power Supply
  • Calibration Certificate
  • Expert Technical Support
  • Call for a customized quote
• Freezer, refrigerator, and walk in cooler storage of viruses, blood and plasma.
• Pharmaceuticals storage.
• Bio Pharma lab development.
• Foods and perishable storage (in restaurants, grocery stores, and food processing).
• Servers rooms/data centers and general facilities maintenance.
• High temperature manufacturing and storage.
