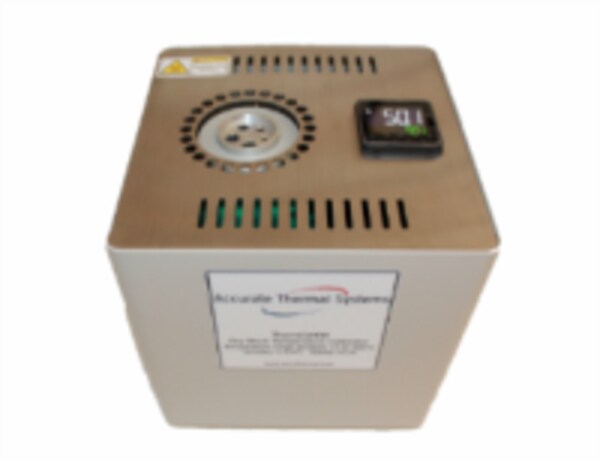

ThermCal400 Temperature Calibrator
The ThermCal400 Dry Block Temperature calibrator is a small, rugged, portable and light weight calibrator that is easy to use straight out of the box with specifications good enough to be a laboratory standard. Perform calibration checks on liquid in glass thermometers, dial thermometers, hand held digital indicators, probe assemblies, systems and virtually dozens of other temperature monitoring and recording devices. Checking the performance and accuracy of a temperature sensor is best performed by placing it in precise environment at it's true operating temperature which is what Dry Block Calibrators do well. The included large multi-well insert has 5 holes to accept the more common probe diameters; 1/8", 3/16", 1/4", 5/16" and 3/8". We also offer a list of optional inserts with various other hole sizes. For safety the unit has independent over-temperature protection and has an internal chassis fan to keep everything cool. Included in the box along with unit is a multi-well aluminum insert, insert extractor, power cable, carrying strap, instruction manual and traceable calibration certificate with data and calibration label on the unit. We recommend purchasing the 3 year service and calibration plan to keep your unit factory tuned and calibrated. We'll notify you every year when it's due for calibration and take care of the rest.
Features:
- Laboratory grade performance at an economical price
- Rugged powder coated case
- Polished stainless steel top and bottom
- Lightweight, only 10 lbs with insert
- Includes multi-well insert for most probe sizes
- Store and recall up to 8 set-points
- Adjustable ramp rate for reliable thermal switch testing
- Includes traceable calibration with data and calibration label
- Backed by 25 years of calibrator design and manufacturing experience
- Advanced all digital controller
- Made in the USA
| Temperature Sensing Range: | +5 to 400ºC (752ºF) |
| Dimensions: | (H x W x L): 8.25” x 8” x 8” |
| Weight: | 10 Lbs. |
| Power: | Mains voltage 120V or 240V fixed, Power 900 watts |

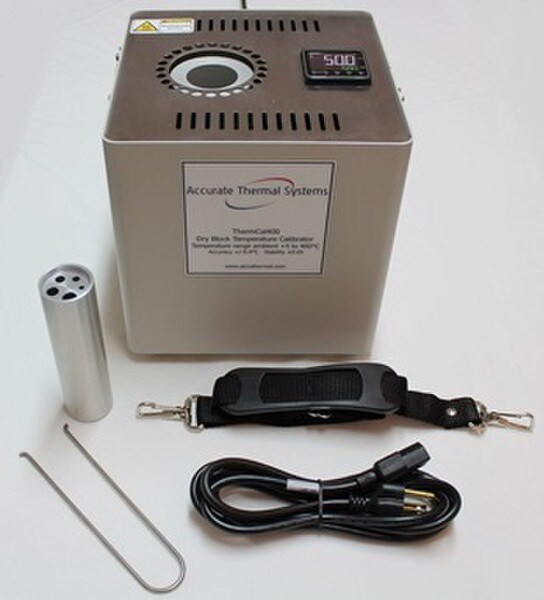

- ThermCal400 Calibrator
- Insert 1/8" 3/16" 1/4" 5/16" & 3/8" diameter wells.
- Insert Extractor
- Power Cable and Carry Strap
- Instruction Manual & Calibration Certificate
