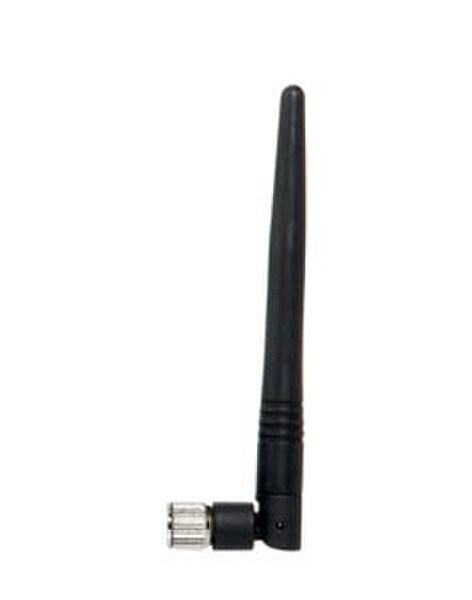

3,5" Antenna For RF500 Transmitter

(0)No Reviews yet
$41.96 $52.45
QuantityPrice
SKU: CMKACC010
Provided: Each

Key Specifications

  • Model: RF504 High Gain Antenna 3.5"
  • Gain: Maximum of 7 dBi—higher gain antennas are not permitted as they may void compliance and warranty.
  • Impedance: 50 Ohms, matching the radio interface for optimal signal transmission and to prevent damage.
  • Compatibility: Suitable for all RF500 wireless transmitters (e.g., RF512, RF513, RF516) and both RF500A and RF500AP Gateways.
  • Replacement: The RF504 antenna can be purchased as a replacement part and installed in the field.

IN STOCK

Current Stock: 18

Notable Features

Back

Details

The RF500 system—from the Gateway to the various transmitters like RF512, RF513, and RF516—is supplied with a 3.5" High Gain Antenna (Part Number RF504). This antenna is standard and essential for both transmitting and receiving radio signals in the 2.4 GHz band using the IEEE 802.15.4 protocol. The antenna is designed for either horizontal or vertical mounting, allowing flexible installation to optimize signal quality and coverage.
