  • CMKREC014: RF512M Wireless Transmitter Meshing Kit

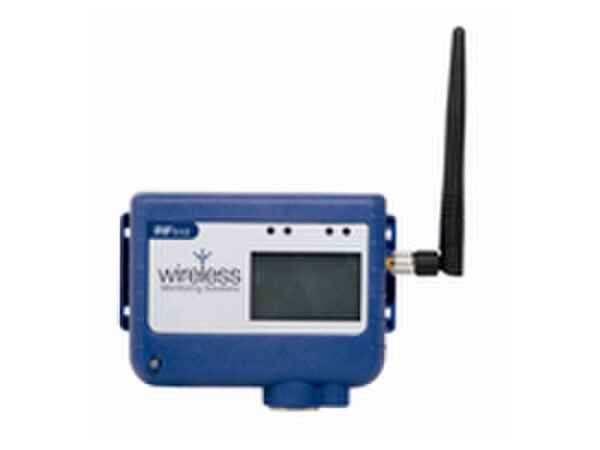

Wireless Temperature Transmitter RF512M Meshing Kit

(0)No Reviews yet
Provided: Each
-40°F ~ +257°F (-40°C ~ +125°C)
Capable of monitoring three (3) temperature points. Integral temperature sensor plus connectors for two external temperature sensors and an external door sensor. Contains LCD screen for local temperature display at point of measurement. LED's allow checks of active/alarm indication. Selectable scales include °F/°C. BioCote protected surfaces inhibit growth of bacteria, mold, and fungi providing an extra line of defense in high-risk environments. Includes high gain antenna and power supply unit.

The CMKREC014/RF512M Transmitter Communicates with RF500 Gateway which collects all data and sends out email / text message alerts
  • Part number: CMKREC014
  • Integral Thermistor Sensor: -22°F to +158°F / -30°C to +70°C
  • External Sensor: -40°F to +257°F / -40°C to +125°C
  • Scales: °F and °C
  • Temperature Integral Thermistor: +/- 0.9°F / 0°C to +70°C +/- 0.5°C
  • Temperature External Thermistor: +/- 0.9°F / -20°C to +70°C +/- 0.5°C
  • Temperature Thermistor Full Range: +/- 1.8°F / +/- 0.1°C
  • Resolution Temperature: 0.2°F / 0.1°C
  • Door Sensor: 7.5 seconds
  • Storage Temperature: -40°F to +185°F / -40°C to +85°C
  • RF Frequency: 2.4GHz using IEEE 802.15.4
  • High-Gain Antenna: length 9.25 inches from pivot
  • Radio Range: Typically 164 ft. indoors (cannot be guaranteed varies from building to building)
  • Clock Accuracy: 20ppm (1 minute/month) at 25°C
  • Logging Memory: 32000 records
  • Logging Frequency: Programmable between 1 minute and 60 minutes
  • Monitoring Frequency: 1 minute
  • LEDs: Red (Warning) / Green (Active)
  • Case Material: Over Moulded food safe clear Polycarbonate with BioCote antimicrobial.
  • Environmental Protection Case enclosure designed to meet IP67 BS EN 60529
  • Battery Type: Replaceable Lithium 'C' Cell Saft LSH14 Light
  • Battery Life: Up to three (3) years
  • Dimensions: L 5.28" x W 3.27" x D 1.34"
  • Weight: 270g
  • RF512 Transmitter with built-in ambient temperature sensor.
  • High Gain Antenna
  • Power Supply Unit
  • Unlimited Technical Support
  • ( Sensors and Power Supply Optional )
