INOR Transmitter Configuration Kit

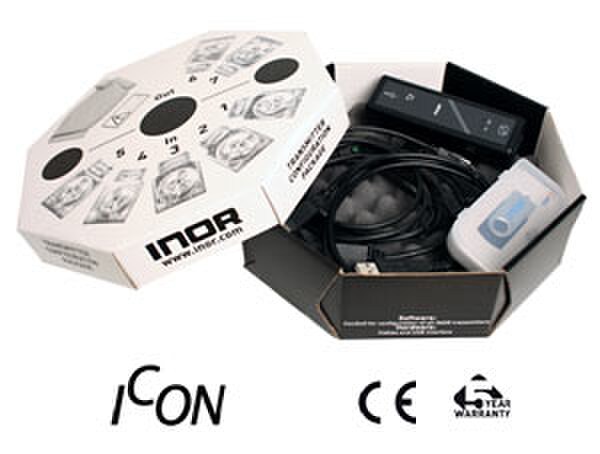

The INOR ICON is a complete kit for PC configuration of all non-Ex transmitters in the INOR product line, except for the Meso transmitters. The kit contains the INOR USB Interface, transmitter cables and the new software, ConSoft. Communication with the connected transmitter is established automatically, without any problems to match the PC communication port to the software. Some features include automatic transmitter identification for quick start up, diagnostic LEDs on the USB Interface that show the communication status, and simple installation of configuration software and drivers.
- Part number INOSEN013
- Input (PC to USB Interface) USB cable

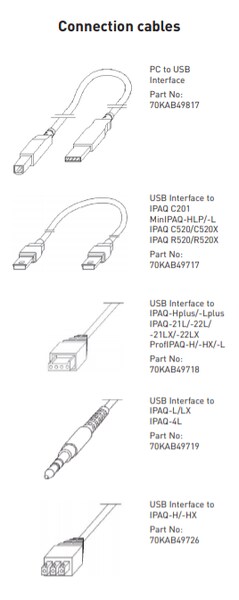

- Output (USB Interface to transmitter) Changeable transmitter cables
- Power Supply from USB port
- Ambient Operation Temperature: 0 to 50°C / 32 to 122°F
- Ambient Storage Temperature: -20 to 70°C / -4 to 140°F
- Humidity (non-condensing) 0 to 90% RH
- Galvanic isolation 1500 VAC
- USB compliance USB v.1.1 and USB v.2.0
- System Requirements:
- Windows 2000 (SP3) XP (SP2+) Vista (32-bit)
- Display resolution: Min. 800 x 600
- Hard Drive Space: 50 MB
- Inor Configuration Kit
- User Instructions
- Installation Guide
- Free download of ConSoft Configuration Software and USB Interface Driver
- Expert Technical Support
- INOSEN013 Instructions
- Installation Guide
- ConSoft v.2.0.0.8 (PC Only)
- USB Interface Driver
- INOR ICON Datasheet
- USB communication
- Automatic matching of communication ports
- Automatic transmitter identification for quick start up
- Diagnostic LED’s on the USB Interface show the communication status
- Simple installation of configuration software and drivers for the USB Interface
- User Instructions and Installation Guide included (on USB memory stick)
- Free download of configuration software, ConSoft, and USB Interface software from website
