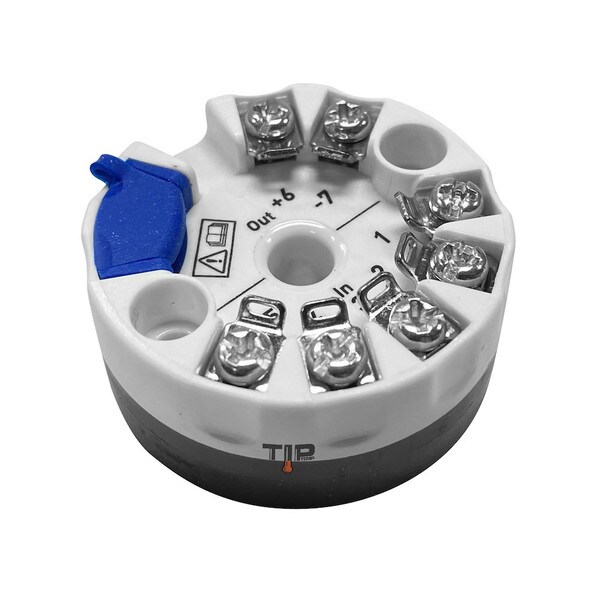

Programmable 2-wire(out) Transmitter
MINIPAQ-HLP is a basic, programmable non-isolated, easy-to-use 2-wire transmitter. The Low Profile housing has a height of only 19.5 mm / 0.77 inch.
Configuration is made in seconds with the user friendly Windows software, MINIPAQ Soft. No external power supply required for configuration. The transmitter is programmable for RTD’s in 3- and 4-wire connection according to different standards as well as for 11 T/C types. Useful error correction functions improve the accuracy.
Configuration is made in seconds with the user friendly Windows software, MINIPAQ Soft. No external power supply required for configuration. The transmitter is programmable for RTD’s in 3- and 4-wire connection according to different standards as well as for 11 T/C types. Useful error correction functions improve the accuracy.
- Robust terminals with test connections
- Only 19.5 mm / 0.77 inch high
- Accepts RTD in 3- and 4-wire connection and 11 T/C types
• Temperature linear output - Sensor error and system (sensor/transmitter) error correction for highest total accuracy
- Configuration without external power
- Easy-to-use Windows configuration software
- NAMUR compliant
- Rugged design tested for 10 g vibrations
- USB communication
| Temperature Sensing Range: | -328 ~ 1832°F (-200 ~ 1000°C) |
| Operating Temperature Range: | -40 ~ 185°F (-40 ~ 85°C) |
| Temperature Accuracy: | ±0.15 % of temperature span |
| Temperature Scale: | °F or °C |
| Dimensions: | 1.75" Dia x 0.77" (44.5 x 19.5mm) |
| Power: | 8.0-32.0 VDC |
| Special Notes: | Temperature Measurement Range dependent on input sensor type. See Specifications for further detail |
(1) INOSEN020 2-Wire Transmitter
* Requires USB Configuration Kit (INOSEN021), SOLD SEPARATELY
1) Connect transmitter to PC with USB Configuration Kit (sold separately, sku INOSEN021) with PC software running
2) Configure transmitter based on sensor input and output specs
3) Install and wire the transmitter respectively
