Protective Enclosure
Details

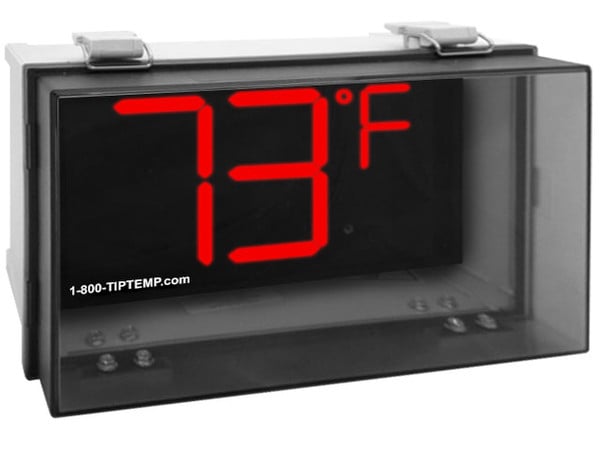

MCMACC044 includes polycarbonate hinges and mounting holes. For use with TELMTR001 Large Display Meter. Enclosures have polycarbonate hinges and mounting holes with M6 threads. In addition to NEMA 4X, they are rated NEMA 13 for protection from oil/coolant spraying. Cover accepts a padlock with a 3/8" max. shackle dia.
Includes panel to mount display.
Approximate internal dimensions are: 11-1/8" X 7-1/8" X 6-1/2"
