  • SHOSEN009: Impact Indicator 25G (Yellow)

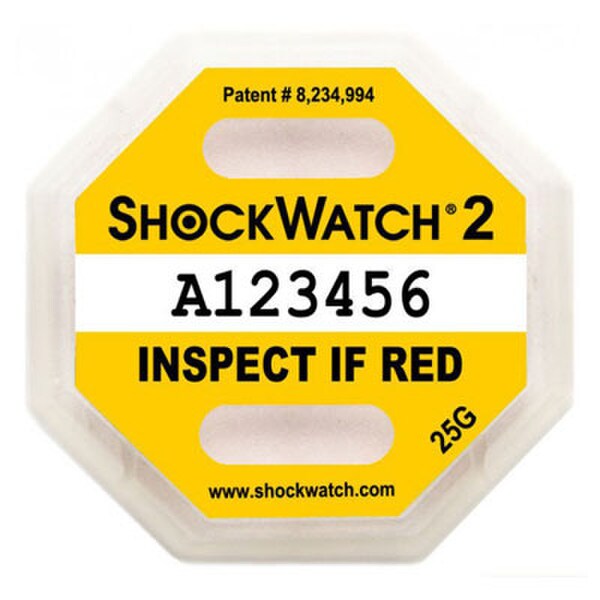

ShockWatch2 Impact Indicating Label

(0)No Reviews yet
Provided: Each
Trigger Force: 25g (User Activated)
Provided in multiples of 100 pieces

Notable Features

Impact indicators for packaging deter mishandling and reduce damage related costs by indicating when fragile products have been exposed to a potentially damaging impact during transit or in storage. These labels are tamper proof, mechanically-activated devices that turn bright red when an impact occurs.

Type of Sensor: Chemical / Impact
Temperature Sensing Range: -13°F ~ 176°F (-25°C ~ 80°C)
Dimensions: 1.69" x 1.69" x 0.25"
Weight: .01
Adhesive: Yes
Storage Conditions: Standard Temperature and Pressure ( 20°C/ 68°F, 1ATM)
Number of Events: 1
Color Change: Permanent
Shelf Life: 2 Years
Adhesive Type: Acrylic
  • Impact Indicator
  • Unlimited Technical Support

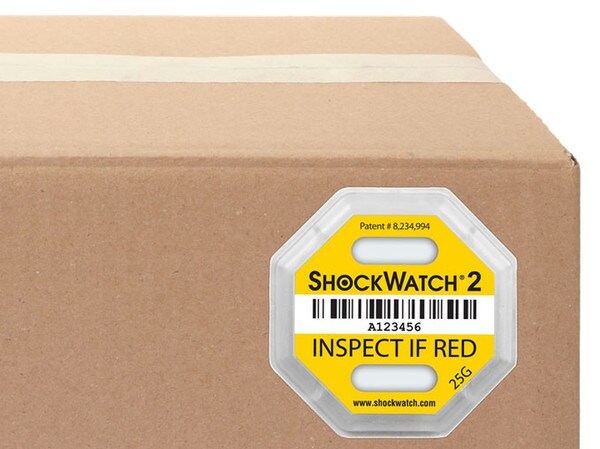

1. Mount the ShockWatch 2 Impact Indicator in the lower third of the package/pallet as close to the edge as possible. Avoid the center of the package because the mounting locations should be structurally sound.
2. If the package is twice as long as it is wide, use two ShockWatch 2 Impact Indicators. Place a second indicator in the same position on the opposite side of the package.
3. Place the Alert Sticker on your bill of lading as a reminder to receivers to check the ShockWatch 2 indicator immediately upon arrival.
4. While these instructions are considered best practices, each situation may be different. If you have any questions or would like to reorder, please call 1 (800) TIP-TEMP (847-8367) or (609) 239-1900 or email: EveryDegreeMatters@tiptemp.com.

Note, once placed on the package, the indicator will turn red in either indication window if dropped, thrown or handled roughly with the corresponding threshold.
