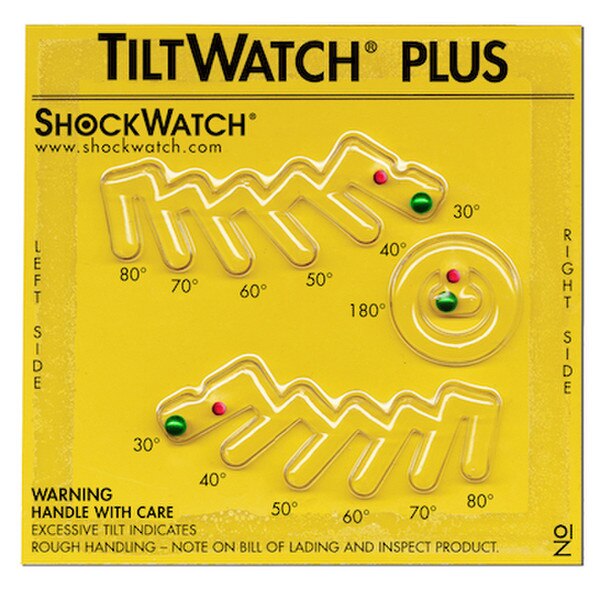

TiltWatch Plus Tip Indicating Label
The TiltWatch Plus indicates whether there has been tilt to the left or right, the degree of the tilt, or if complete overturn has occurred.
TiltWatch Plus is actually three separate indicators in a single unit:
TiltWatch Plus is actually three separate indicators in a single unit:
- One section indicates the degree of tilt to the left
- The second section indicates the degree of tilt to the right
- The third section indicates the total overturn
Type of Sensor: | Tilt |
Temperature Sensing Range: | -40F to 140F |
Adhesive: | Yes |
Shelf Life: | 2 Year |
Adhesive Type: | Vinyl acetate copolymer |
- TiltWatch Indicators
- Companion Labels
- Expert Technical Support
1. Peel the adhesive liner from the back of the TiltWatch Plus while holding it in an upright position. Once the adhesive liner is removed, the TiltWatch Plus is armed. Apply the TiltWatch Plus to an oil-free surface in an environment above 10°C / 50°F for best results.
2. Place the TiltWatch XTR in an upright position near the lower corner of the shipping container. Mounting as low as possible provides the best response.
3. Press the TiltWatch Plus firmly in the center and around the edges to ensure doting adhesion to the container to which it is being applied.
Tip:
Rough wood and heavily waxed wood containers may require special attention. If the wood is extremely rough, we recommend the use of a spray adhesive to increase bonding strength.
2. Place the TiltWatch XTR in an upright position near the lower corner of the shipping container. Mounting as low as possible provides the best response.
3. Press the TiltWatch Plus firmly in the center and around the edges to ensure doting adhesion to the container to which it is being applied.
Tip:
Rough wood and heavily waxed wood containers may require special attention. If the wood is extremely rough, we recommend the use of a spray adhesive to increase bonding strength.
