Temperature / Humidity Sensor
Details

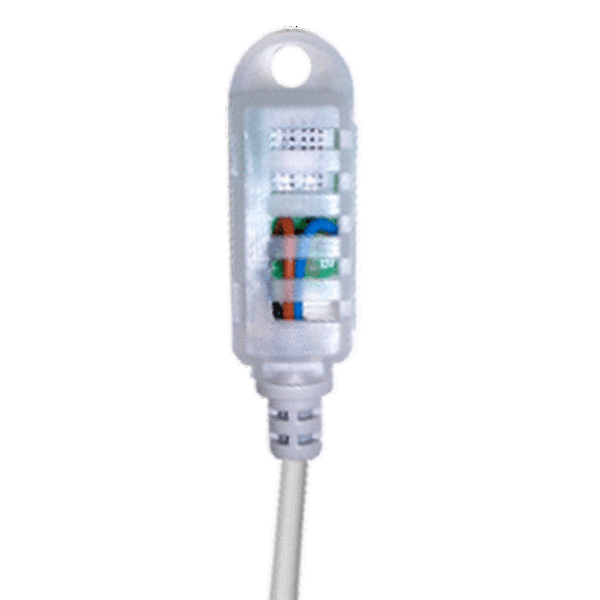

TR-3310 Temperature / Humidity Sensor for RTR-503/503L
Cable Length: 1.0m
Possible Temperature Measurement Range: 0 to 55 °C
Possible Humidity Measurement Range: 10 to 95%RH
Sensor Temperature Resistance: -10 to 60 °C
Sensor Response Time: About 7 min. (90% response)
Temp Measurement Accuracy: Average +/-0.3 °C
Humidity Measurement Accuracy: +/-5%RH (At 25 °C, 50%RH)
Operational Conditions: Do not expose to condensation, dampness, corrosive gases or organic solvents.
The service life of humidity sensors can vary greatly depending on operating environment. Periodic calibration may be required.

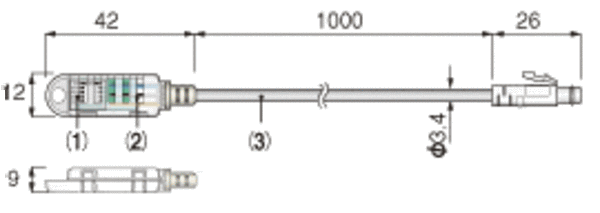

Materials: (1)Temperature/Humidity sensor, (2) Polypropylene resin, (3) Vinyl Coated Electrical Wire
Cable Length: 1.0m
Possible Temperature Measurement Range: 0 to 55 °C
Possible Humidity Measurement Range: 10 to 95%RH
Sensor Temperature Resistance: -10 to 60 °C
Sensor Response Time: About 7 min. (90% response)
Temp Measurement Accuracy: Average +/-0.3 °C
Humidity Measurement Accuracy: +/-5%RH (At 25 °C, 50%RH)
Operational Conditions: Do not expose to condensation, dampness, corrosive gases or organic solvents.
The service life of humidity sensors can vary greatly depending on operating environment. Periodic calibration may be required.
Materials: (1)Temperature/Humidity sensor, (2) Polypropylene resin, (3) Vinyl Coated Electrical Wire
Specs
| Type of Sensor: | Thermistor |
| Temperature Sensing Range: | 0°~55°C / 32°~131°F |
| Temperature Accuracy: | +/- 0.6°F (+/- 0.3°C) typical |
| Temperature Resolution: | 0.1° |
| Temperature Scale: | °F and °C |
| Humidity Range: | 10~95% rH |
| Humidity Accuracy: | ±5%RH at 25°C, 50%RH |
| Humidity Resolution: | 1% |
| Calibration Available: | Yes (purchased separately) |
| IP Rating: | IP64 |
| Special Notes: | Humidity Response Time ( 90% ): About 7min. |
