Compact Waterproof Voltage Data Logger
Our TR-5i Series data loggers are designed to measure and record temperature, voltage, 4-20mA, or pulse count. The body of the data loggers are water resistant and can be used in an environment of -40°C to 80°C. Moreover, battery-powered operation means the loggers can be placed anywhere without the need for AC power.

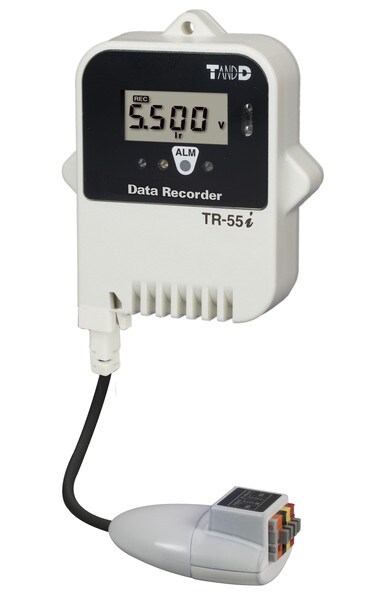

Depending on the model type, the TR-55i can measure and record temperature, voltage, 4-20mA, or pulse count. The transmitters body is water resistant when the Input Module is connected.
Note: Input Module Alone is not water resistant.
- Part Number: TADREC045
- Measurement Channel:
Voltage - Unit of Measurement:
V mV - Measurement Range:
0 to 22 V - Measurement Accuracy:
±0.5 mV + 0.3% rdg [10 to 40°C]
±1.0 mV + 0.5% rdg [-40 to 10°C / 40 to 80°C] - Measurement Resolution:
up to 400mV at 0.1mV
up to 800mV at 0.2mV
up to 999mV at 0.4mV
up to 3.2V at 1mV
up to 6.5V at 2mV
up to 9.999V at 4mV
up to 22V at 10mV - Dimensions: 62mm x 47mm x 19mm
- Selectable recording intervals from 1 second to 60 min
- 16 Month Battery Life
- Data Logger
- Instruction Manual
- Strap
- Expert Technical Support
