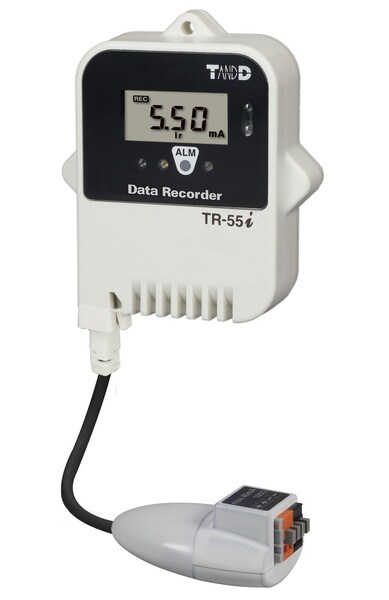

TandD TR-55i-mA Compact Waterproof 4-20mA Data Logger
Our TR-5i Series data loggers are designed to measure and record temperature, voltage, 4-20mA, or pulse count. The body of the data loggers are water resistant and can be used in an environment of -40°C to 80°C. Moreover, battery-powered operation means the loggers can be placed anywhere without the need for AC power.
Depending on the model type, the TR-55i can measure and record temperature, voltage, 4-20mA, or pulse count. The body is water resistant when the Input Module is connected.
Note: Input Module is not water resistant.
- Part Number: TADREC046
- Measurement Channel:
4-20mA - Unit of Measurement:
mA - Measurement Range:
0 to 20 mA - Measurement Accuracy:
±0.05 mA + 0.3 % rdg [10 to 40°C]
±0.1mA + 0.3 % rdg [-40 to 10°C / 40 to 80°C] - Measurement Resolution:
0.01 mA - Dimensions: 62mm x 47mm x 19mm
- Selectable recording intervals from 1 second to 60 min
- 16 Month Battery Life
- Data Logger
- Instruction Manual
- Strap
- Unlimited Technical Support
