Custom Back-Up High Limit Control & Alarm System

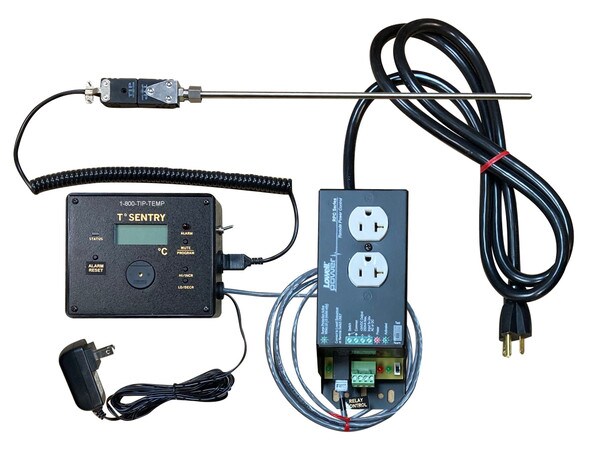

Custom Back-Up High Limit Control System Type "J" UNGROUNDED Thermocouple Input Temperature Range: 32°F to 752°F ( 0°C to 400°C ) VER.#2: Model 140-400JR "J" Ungrounded Thermocouple Input, Digital Single Probe, Temp. Alarm with Power Relay. Range: 0°C to 400°C Resolution: 1°C Unit includes: • User adjustable high & low set points and initial alarm delay period. • Locking Relay with User Reset Required – includes reset switch on front panel. • Audio alarm ( with user mute ) & visual Red LED • 10mA output via 3’ jacketed 2-wire cable to power relay · 120/1/60 UL listed power supply w/10’ cord · On/Off Power Switch on side of case • Holes drilled for mounting clamp ( Ace Glass ) • Furman Miniport-20Q Power Relay mounted in quad box with 6’ power cord. • Amps: 20 Watts: 2400 w/protective cover over terminal strip **Power cord exits Bottom orientation is standard - Top orientation optional ** • Female mini round jack on case to accept ungrounded Type J Thermocouple • TIP-TCJ082P05: Ungrounded Thermocouple (required) type "J" 1/4" dia., stainless steel sheath, 12" length with large male plug attached. • TIP-PCJ063: Patch Cord: Type "J" coiled cable, 1ft extends to 3ft., mini plug and male jack attached. • Calibration Certificate • Instruction manual, parts list and unlimited technical support.
