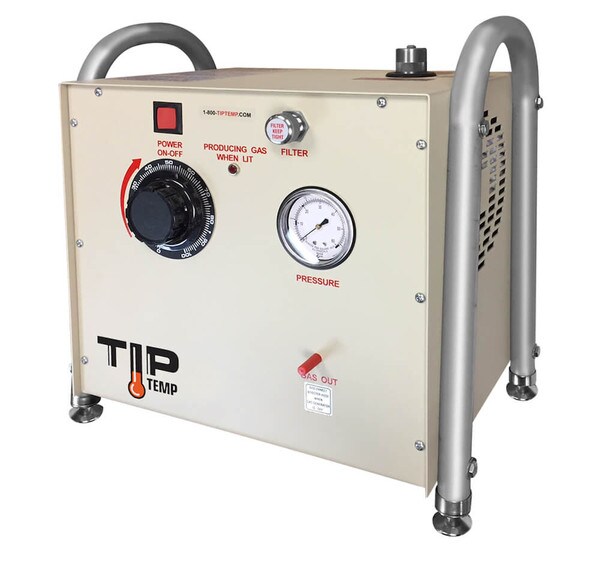

AZ Hydrogen Flame Generator MG-150
Arizona Hydrogen Fire from water!Electric current is applied to holding tank of water and electrolyte, where it converts the water to hydrogen gas and oxygen gas. The gases pass through a small hose to a torch. When lit, the gas produces a high-temperature, precise hydrogen flame. Just add distilled water for the next 2000 hours of operation.
WARRANTY: The machine is warranted for 1 year, however Shipping and Handling charges are the responsiblity of the customer. TIP reserves the right to inspect any machine prior to warranty repairs.
PLEASE NOTE (For US Clients only): The unit may be returned if the customer has not used the machine within 30 days of receipt. However, a 25% restocking fee will apply and all shipping & handling charges must be paid by the customer. A thorough inspection is performed prior to issuing credit making sure the machine has not been operated. Adding fluids to the machine will void the return.
FLUIDS CANNOT BE RETURNED or EXPORTED. The disposal of all fluids is the responsibility of the customer.
WARRANTY: The machine is warranted for 1 year, however Shipping and Handling charges are the responsiblity of the customer. TIP reserves the right to inspect any machine prior to warranty repairs.
PLEASE NOTE (For US Clients only): The unit may be returned if the customer has not used the machine within 30 days of receipt. However, a 25% restocking fee will apply and all shipping & handling charges must be paid by the customer. A thorough inspection is performed prior to issuing credit making sure the machine has not been operated. Adding fluids to the machine will void the return.
FLUIDS CANNOT BE RETURNED or EXPORTED. The disposal of all fluids is the responsibility of the customer.
- Part number TIPHEN023
- Gas Production 5.0 cgh 150 lph
- Max BTU Output 3500/hr
- Operating Pressure 10-30 oz/sq in
- Torch Tip Orifice .003"-.042" (View all torch tips)
- Electrolyte Capacity 2.5 qt.
- Water Consumption To 2.5 oz/hr.
- Water Addit. Interval 8 hrs
- Input Voltage 60 Hz 120 VAC
- Power Requirement Max. 900 Watts
- Dimensions 16x14x16
- Booster Capacity 16 oz
- Booster Consumption To 1.0 oz/hr
- Booster Addit. Interval 8 hrs
- Net Weight 65 lbs.
- Shipping Weight 75 lbs.
- Torch Hand Piece Kit
- Filling Funnel
- Filter Elements
- 48" Hose
- Liquid Depth Float
- Booster Assembly
- Torch Tips
- Torch Rest
- Fluids (US orders only)
- Instructions
- Expert Technical Support
- View Instruction Manual for TIPHEN023
- View Sales Brochure for TIPHEN023
- View Required Safety Items for TIPHEN023
- View Material Safety Data Sheets for Booster Fluid
- View Material Safety Data Sheets for Electrolyte Fluid
- Add distilled water to generator tank daily BEFORE start up.
- Add booster fuel (methanol) to booster daily BEFORE start up.
- Exercise filler cap riser piston twice a week BEFORE start up.
- Clean booster out weekly.
- Clean or change filter element monthly.
- Lubricate filler cap riser piston cylinder walls monthly with a very thin film of silicone grease. This will also lubricate the O-ring.
- Change filter gaskets, filler cap gasket, and booster cap gasket semi-annually.
- Send equipment TIPTEMP for safety inspection, cleanout, hose and gasket replacement and test running every 18 months or 2,000 hours use, whichever shall first occur, or sooner if an operational problem should develop.
Extensive testing has indicated that users can achieve trouble free performance by observing certain maintenance procedures as follows:
