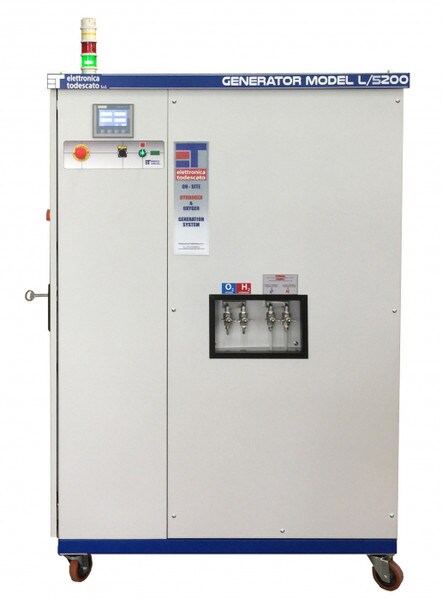

L/5200 Hydrogen & Oxygen Generators

(0)No Reviews yet
QuantityPrice
SKU: TIPHEN307
On-site Separated Gas Generation System
L/5200 Gas Production H2: 3466 Lt/h - O2: 1733 Lt/h

Specifications Brochure Comparison Document

The link above provides a comparison of the following models:

  • L-1600 Max Power 4.5 KW, Water Consumption 0.8 L/h
  • L-3200 Max Power 10.5 KW, Water Consumption 1.6 L/h
  • L-5200 Max Power 17 KW, Water Consumption 2.6 L/h
  • L-11000 Max Power 34 KW, Water Consumption 5.2 L/h

Call For Quote

Notable Features

Back

The operating principle of these generators is based on the electrolytic dissociation of water to separately obtain high-purity hydrogen and oxygen for heat treatments in general. All machine operating parameters are managed by a microprocessor with self-diagnostics and alphanumeric display.

Maintenance is extremely simple.

Back
Operating Temperature Range: Environment between 41°F/5°C and 86°F/30 °C
Dimensions: 54.28" x 31.5" x 66.93" / 115 x 80 x 170 cm (L x W x H )
Weight: 1,307 lbs. / 593 kg
Special Notes: Requires 4 Cases of Electrolyte
