⚪ 1/4" Diameter 6" Length RTD Probe

$87.00
QuantityPrice
1 – 9$87.00
10 – 24$82.65
25 – 49$78.30
50 – 74$73.95
75 – 99$71.78
100 +$69.60
SKU: TIPRTD113P09
Provided: Each

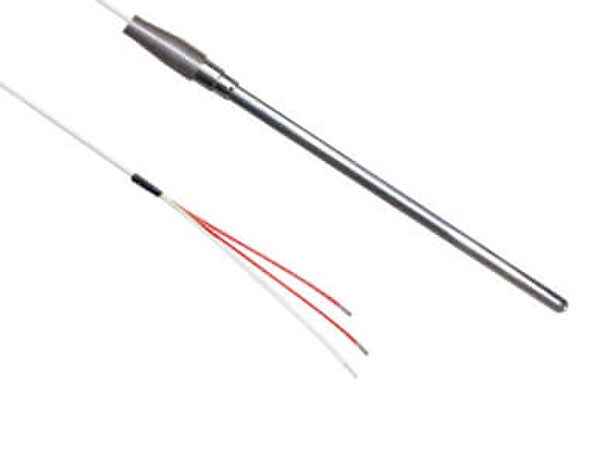

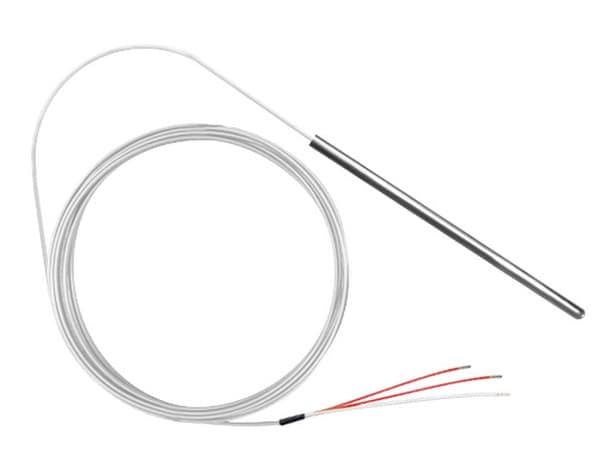

100Ω RTD Sensor with 316 Stainless Steel 6" Sheath

──────────────────────────

Quick Specs

🌡 Temperature Range: -4°F to 392°F (-20°C to 200°C)

⚪ Sensor Type: 100Ω RTD, 3-Wire

📏 Sheath Diameter: 1/4" (6.35 mm)

🛡️ Sheath Material: 316 Stainless Steel

📐 Sheath Lengths: 6",

🧵 Lead Wire: 72" (6 ft), Teflon Insulated

⚙️ Compatibility: 3-Wire, 100Ω RTD Instruments

🛒 Length Selection: Choose Above Add to Cart

🔧 Customization: Available Through RFQ

──────────────────────────

Related Items & Spare Parts

⚙️ Compatible 100Ω RTD temperature controllers

📈 RTD-compatible temperature data loggers

🧵 3-conductor RTD extension wire

🧰 RTD connectors and terminal hardware

🛡️ Stainless steel thermowells and fittings

⚖️ RTD calibration services

Explore the related items at the bottom of this page for compatible accessories, replacement parts, and supplies.

──────────────────────────

🛒 Add to Cart Nowor 📞 Call 1-800-TIP-TEMP (847-8367)for expert guidance.

Notable Features

0.5C Accuracy1 C AccuracyBest SellerBusinessCalibrationRTDSparePartTT Verified
Back

The 1/4" diameter, 100Ω RTD temperature probeprovides temperature measurement from -4°F to 392°F (-20°C to 200°C). Its corrosion-resistant 316 stainless steel sheath is designed for industrial process monitoring, laboratory testing, and equipment temperature measurement.

The 3-wire configurationhelps compensate for lead-wire resistance when connected to compatible RTD instruments, improving measurement accuracy.

Available in 6" sheath , the probe includes 72" (6 ft) Teflon-insulated lead wires. Select your preferred sheath length using the options above Add to Cart, or use the RFQ tab below to request customized lengths and configurations.

──────────────────────────

Ideal Applications

🏭 Industrial process temperature monitoring

⚙️ Machinery and equipment measurements

🧪 Laboratory temperature applications

🌡 Temperature controllers and monitoring systems

🔧 Equipment maintenance and testing

📈 Temperature recording and data acquisition

Back
Temperature Sensing Range: -4 ~ 392°F (-20 ~ 200°C)
Temperature Accuracy: +/- 2°F (+/- 1°C) typical
Temperature Scale: °F and °C
Weight: .15
Thermocouple Type: RTD
Sheath Material: Stainless Steel
Sheath Diameter: 0.250
Sheath Length: 6"
Wire Material: Teflon
Wire Length: 6'
Back
  • (1) 1/4" RTD Sensor
  • Expert Technical Support
  • TIPTEMP Stocks Related Accessories
Back

Compliance & Risk Mitigation

🎯 3-wire design reduces lead resistance errors

🛡️ Stainless steel sheath resists corrosion

🌡 Supports process temperature verification

🔧 Confirm sheath length before installation

⚙️ Verify instrument and sensor compatibility

⚖️ Calibrate the measuring system annually

📋 Document calibration and maintenance results

Confirm the RTD element specification, instrument compatibility, and suitability of the sheath material for the application. Measurement accuracy depends on the complete system. Annual calibration is recommended where measurement accuracy is critical, subject to application requirements.

──────────────────────────
