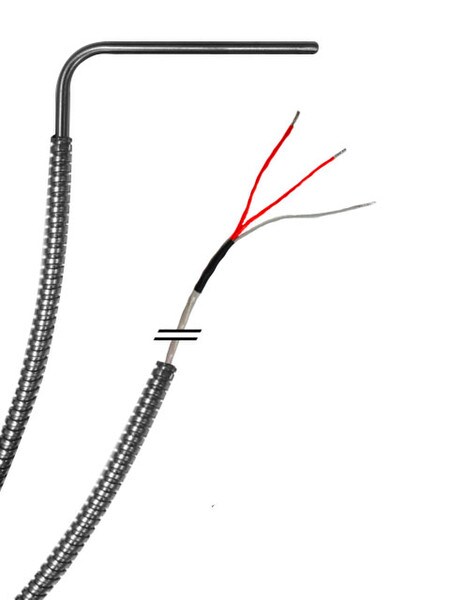

General Purpose Type 90° Bend Plastics Style RTD
General Purpose Type 90° Bend Plastics Style RTD are manufactured in stainless steel sheath that protects the RTD element from the application environment.
RTD50-3-96-RTD-6 90° Bend
Plastics Style RTD, 100 ohm,
Single, Class B, 3-Wire, TCR=0.00385,
3/16"OD x "A" Length = 3",
304 SST Sheath,
96" Stranded Teflon Wire w/ SST Armor,
Split lead Termination, no bayonet cap
| Temperature Sensing Range: | -50° ~ 200°C |
| Temperature Accuracy: | +/- 0.6°F (+/- 0.3°C) typical |
| Thermocouple Type: | RTD |
| Sheath Material: | Stainless Steel |
| Sheath Diameter: | 0.187 |
| Sheath Length: | 3" |
| Wire Material: | Armor Cable |
| Wire Length: | 96" |
| Max Temp: | 200°C |
RTD50-3-96-RTD-6 90° Bend Plastics Style RTD, 100 ohm, Single, Class B, 3-Wire, TCR=0.00385, 3/16"OD x "A" Length = 3", 304 SST Sheath, 96" Stranded Teflon Wire w/ SST Armor, Split lead Termination, no bayonet cap
