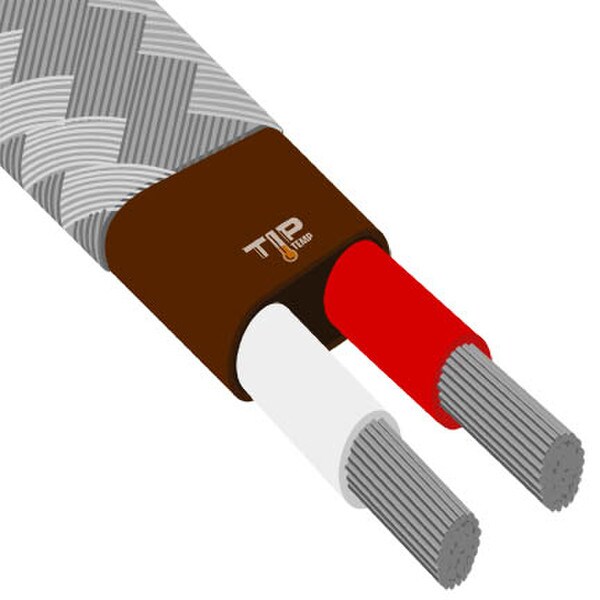

"J" Thermocouple Grade Wire with Teflon Jacket & SSOB
Insulated thermocouple wire is suggested for measuring temperatures suitable to the wires characteristics.
Stainless Steel Over Braid (SSOB) is used in applications that require mechanical and abrasion protection. SSOB is tough and flexible.
*"Signal Dist." relates to how far thermocouple signal travels without amplification.
Stainless Steel Over Braid (SSOB) is used in applications that require mechanical and abrasion protection. SSOB is tough and flexible.
| Calibration | Wire Insulation | Max Temp | Gauge | Wire Type | Signal Dist. | Product Code |
J + Iron - Constantan Positive = Negative = | GLASS BRAID GLASS BRAID | 900 F | 20 | solid | 280 ft | IWJ-20-GG |
|---|---|---|---|---|---|---|
| 20 | stranded | 280 ft | IWJ-20s-GG | |||
| 24 | solid | 110 ft | IWJ-24-GG | |||
| 24 | stranded | 110 ft | IWJ-24s-GG | |||
| 28 | solid | 44 ft | IWJ-28-GG | |||
| 30 | solid | 27 ft | IWJ-30-GG | |||
| 36 | solid | 7 ft | IWJ-36-GG | |||
STAINLESS STEEL | 20 | solid | 280 ft | IWJ-20-GG-SSOB | ||
| 20 | stranded | 280 ft | IWJ-20s-GG-SSOB | |||
| 24 | solid | 110 ft | IWJ-24-GG-SSOB | |||
| 24 | stranded | 110 ft | IWJ-24s-GG-SSOB | |||
TEFLON TEFLON | 500 F | 20 | solid | 280 ft | IWJ-20-TT | |
| 20 | stranded | 280 ft | IWJ-20s-TT | |||
| 22 | stranded | 200 ft | IWJ-22s-TT | |||
| 24 | stranded | 110 ft | IWJ-24s-TT | |||
| 24 | solid | 110 ft | IWJ-24-TT | |||
| 30 | solid | 27 ft | IWJ-30-TT | |||
| 36 | solid | 7 ft | IWJ-36-TT | |||
| 40 | solid | 8 in | IWJ-40-TT | |||
STAINLESS STEEL | 20 | solid | 280 ft | IWJ-20-TT-SSOB | ||
| 20 | stranded | 280 ft | IWJ-20s-TT-SSOB | |||
| 24 | solid | 110 ft | IWJ-24-TT-SSOB | |||
| 24 | stranded | 110 ft | IWJ-24s-TT-SSOB |
*"Signal Dist." relates to how far thermocouple signal travels without amplification.
| Temperature Sensing Range: | Teflon is rated at max 500°F / 260°C |
| Temperature Accuracy: | +/- 4°F (+/- 2°C) typical |
| Sold As: | Feet |
- Type "J" thermocouple grade wire Stranded 24 Ga with Stainless Steel Overbraid. - cut to your required length
- Online Technical Support
