“K” Thermocouple Grade Wire with Teflon Jacket
Insulated thermocouple wire is suggested for measuring temperatures suitable to the wires characteristics.
Stainless Steel Over Braid (SSOB) is used in applications that require mechanical and abrasion protection. SSOB is tough and flexible.
*"Signal Dist." relates to how far thermocouple signal travels without amplification.
Stainless Steel Over Braid (SSOB) is used in applications that require mechanical and abrasion protection. SSOB is tough and flexible.
K | + Chromel - Alumel | Positive = Yellow Negative = Red | |||
Wire Insulation | Max Temp | Gauge | Wire Type | Signal Dist. | Product Code |
GLASS BRAID on each conductor GLASS BRAID overall | 900 F 482 C | 20 | solid | 170 ft | IWK-20-GG |
20 | stranded | 170 ft | IWK-20s-GG | ||
24 | solid | 67 ft | IWK-24-GG | ||
24 | stranded | 67 ft | IWK-24s-GG | ||
28 | solid | 28 ft | IWK-28-GG | ||
30 | solid | 17 ft | IWK-30-GG | ||
36 | solid | 4 ft | IWK-36-GG | ||
STAINLESS STEEL OVERBRAID | 20 | solid | 170 ft | IWK-20-GG-SSOB | |
20 | stranded | 170 ft | IWK-20s-GG-SSOB | ||
24 | solid | 67 ft | IWK-24-GG-SSOB | ||
24 | stranded | 67 ft | IWK-24s-GG-SSOB | ||
TEFLON on each conductor TEFLON overall | 500 F 260 C | 20 | solid | 170 ft | IWK-20-TT |
20 | stranded | 170 ft | IWK-20s-TT | ||
22 | stranded | 110 ft | IWK-22s-TT | ||
24 | stranded | 67 ft | IWK-24s-TT | ||
24 | solid | 67 ft | IWK-24-TT | ||
30 | solid | 17 ft | IWK-30-TT | ||
36 | solid | 4 ft | IWK-36-TT | ||
40 | solid | 7 in | IWK-40-TT | ||
STAINLESS STEEL OVERBRAID | 20 | solid | 170 ft | IWK-20-TT-SSOB | |
20 | stranded | 170 ft | IWK-20s-TT-SSOB | ||
24 | solid | 67 ft | IWK-24-TT-SSOB | ||
24 | stranded | 67 ft | IWK-24s-TT-SSOB |
*"Signal Dist." relates to how far thermocouple signal travels without amplification.

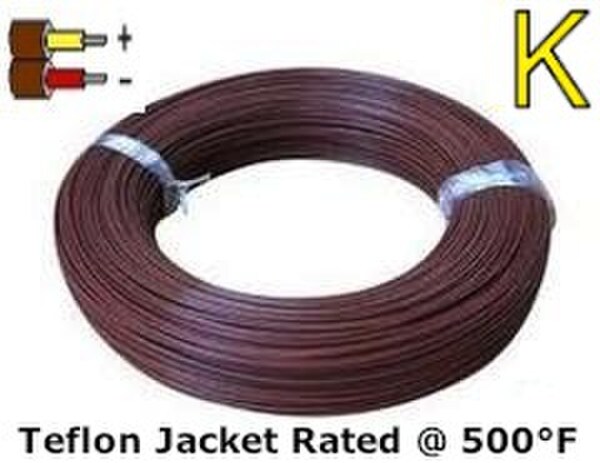

- Part Number IWK-24S-TT / TIPWRK028

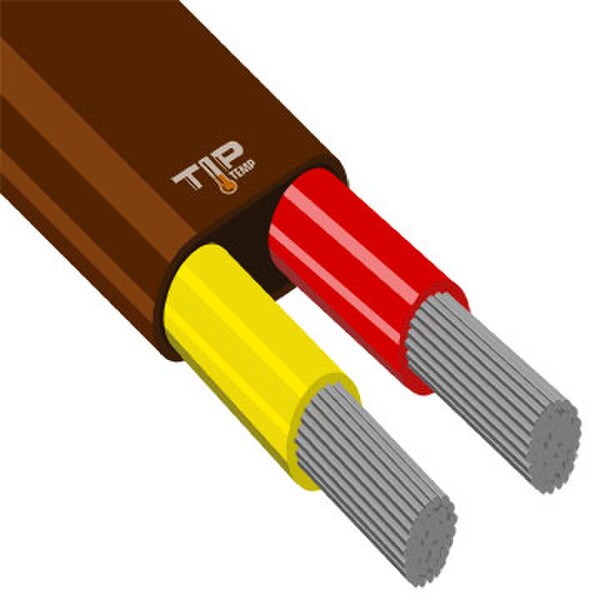

- Type "K" Wire Teflon Jacket 24 Ga. Stranded
- Teflon is rated at max 500°F / 260°C
- Accuracy ±2°C / 4°F per ASTM standards.
- Max Distance Signal will travel is 67 Ft. without amplification.
- (Yellow ) Chromel + / (Red) Alumel ( Red is also Magnetic )
- Type "K" teflon thermocouple grade wire 24 ga. stranded - cut to your required length and priced per foot.
