  • TLCSEN006: Temperature Label 7 Level Strip-4

Reversible 7 Level Temperature Label

(0)No Reviews yet
$17.09
QuantityPrice
1 – 9$17.09
10 – 24$16.23
25 – 49$15.38
50 – 74$14.52
75 – 99$14.10
100 +$13.67
SKU: TLCSEN006
Provided: Pack of 10 Pieces

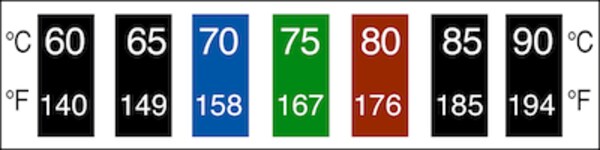

140°F~194°F(60°C~90°C)
Reversible Labels Display Current Temperature Conditions
Sold in pack of 10
GREEN bar highlighted is actual temperature reading

IN STOCK

Current Stock: 14

Notable Features

Reversible Temperature Labels ( aka: Liquid Crystal Indicators ) can change back and forth as needed to provide an indication of the present temperature. Reversible temperature Labels display the current temperature between: - 30°C to 120°C / -30°F to 248°F. Caution: Exposing liquid crystals to temperatures above 250°F / 122°C will reduce the labels accuracy and may cause permanent damage to the liquid crystals. Exposure to UV light (Sun) will also damage the liquid crystals.

Interpretation:
BLUE bar highlighted is below actual temperature reading
GREEN bar highlighted is actual temperature reading
BROWN bar highlighted is above actual temperature reading
Type of Sensor: Liquid Crystal / Reversible
Temperature Sensing Range: 140 to 194°F (60 to 90°C)
Temperature Accuracy: +/- 2°F (+/- 1°C) typical
Temperature Scale: °F and °C
Dimensions: 0.5 x 1.77" (12.5 by 45 mm)
Weight: 0.005 lb (2.2 g) per pack
Calibration Available: Certificate of Conformance ( $ Extra )
IP Rating: Moisture Resistant
Sold As: Pack of 10 Pieces
Adhesive: Yes
Storage Conditions: Store in a cool dark place.
Number of Events: 7
Color Change: Reversible
Shelf Life: 12 Months
Adhesive Type: 3M
  • (1) Pack of 10 Labels
  • Expert Technical Support
Instructions: Remove liner from self-adhesive backing. Apply to clean, dry surface. Green indicates the correct temperature. If green is not visible, the temperature will be mid way between the illuminated tan and blue windows.

Note: Color change will occur when temperature is between range on thermometer

Interpretation:
BLUE bar highlighted is below actual temperature reading
GREEN bar highlighted is actual temperature reading
BROWN bar highlighted is above actual temperature reading
