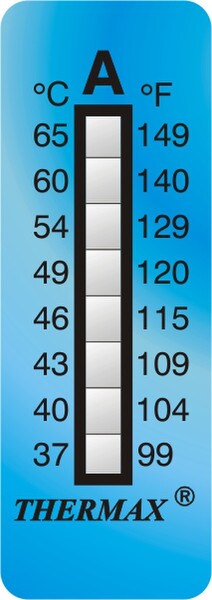

Irreversible 8 Event Temperature Label
Activation on Rising Temperature. Each of the eight temperature indicators changes color when its corresponding temperature has been exceeded.
Requires Special Packaging and Expedited Shipping
| Type of Sensor: | Color Changing / Asending |
| Temperature Sensing Range: | 99°F~149°F ( 37°C~65°C ) |
| Temperature Accuracy: | +/- 2°F (+/- 1°C) typical |
| Temperature Scale: | °F and °C |
| Dimensions: | 2 x 0.7" (51 x 18mm) |
| Weight: | .02 |
| Calibration Available: | Certificate of Conformance ( $ Extra ) |
| Sold As: | Pack of 10 Pieces |
| Adhesive: | Yes |
| Storage Conditions: | Store In Cool Dark Place |
| Number of Events: | 8 |
| Color Change: | Permanent |
| Shelf Life: | 12 Months |
| Adhesive Type: | 3M |
- (1) Pack of 10 Labels
- Instructions
- Expert Technical Support
Irreversible Temperature Labels Instructions for Use Peel indicator from release paper Apply to any clean, grease free surface ensuring that the indicator has adhered to the surface A color change from silver white/orange to black indicates that the temperature has been reached . Store in cool dry place below <64ºF &< 50% relative humidity.

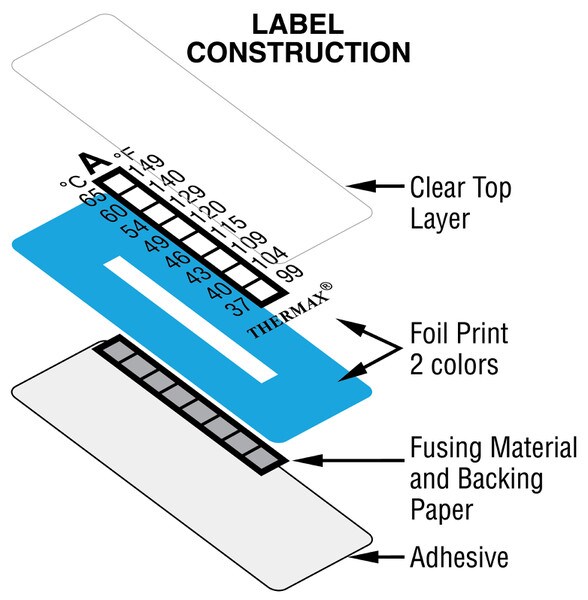

The temperature-sensitive elements are phase-change indicators which use defined temperature melting points of purified organic chemicals to give the unique, high precision, color change effects. Each temperature event uses a different chemical compound and is appllied to a special absorptive black paper substrate. When the rated temperature is exceeded, the chemical melts and is absorbed by the substrate, causing a permanent color change. Up to ten elements can be combined together on a single label.
Contact TIPTEMP to discuss custom manufacturing services to meet your precise requirements. For example, size, shape, color, temperature range, number of temperature elements, graphic printing (logos etc.).
The temperature-sensitive elements are phase-change indicators which use defined temperature melting points of purified organic chemicals to give the unique, high precision, color change effects. Each temperature event uses a different chemical compound and is appllied to a special absorptive black paper substrate. When the rated temperature is exceeded, the chemical melts and is absorbed by the substrate, causing a permanent color change. Up to ten elements can be combined together on a single label.
Contact TIPTEMP to discuss custom manufacturing services to meet your precise requirements. For example, size, shape, color, temperature range, number of temperature elements, graphic printing (logos etc.).
