⬜⬛ 10-Level Temperature Label

$29.39
QuantityPrice
1 – 9$29.39
10 – 24$27.92
25 – 49$26.45
50 – 74$24.98
75 – 99$24.25
100 +$23.51
SKU: TLCSEN034
Provided: Pack of 10 Pieces

Irreversible 171°F to 261°F Temperature Indicator

──────────────────────────

Quick Specs

🌡 Temperature Range:171°F to 261°F (77°C to 127°C)

🧮 Temperature Events:10 Levels

⬜⬛ Indicator Type:Irreversible • Ascending

🎨 Color Change:White to Black • Permanent

🎯 Accuracy: ±2°F (±1°C) Typical

📋 Record:Permanent Record of Max Temperature

📐 Dimensions:2" × 0.7" (51 × 18 mm)

🏷️ Mounting:3M Adhesive Backed

📦 Sold As:Pack of 10 Labels

📅 Shelf Life:12 Months

──────────────────────────

Related Items & Spare Parts

⬜⬛ Alternate-range irreversible labels

⬜⬛ Single-level temperature indicators

⬜⬛ Micro and encapsulated temperature labels

🧪 Reversible temperature indicators

🔴 Infrared non-contact thermometers

📈 Temperature data loggers

📋 Certificate of Conformance options

Explore the related items at the bottom of this page for compatible accessories, replacement parts, and supplies.

──────────────────────────

🛒 Add to Cart Nowor 📞 Call 1-800-TIP-TEMP (847-8367)for expert guidance.

IN STOCK

Current Stock: 4

Notable Features

2℃ AccuracyLabel Ascending1yr Shelf LifeTemperature C/FTT VerifiedWaterProof
Back

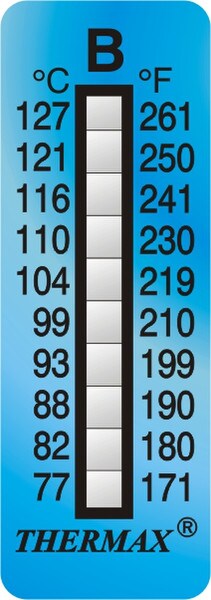

This 10-level non-reversible temperature labelprovides a permanent visual record of the maximum surface temperature reached between 171°F and 261°F (77°C to 127°C).

As each rated temperature is reached, the corresponding indicator physically changes from white to black, creating a permanent, irreversible record of the highest indicated temperature. The 10 temperature levels provide more detail than a single-event indicator, making the label useful for equipment monitoring, troubleshooting, testing, and preventive maintenance.

──────────────────────────

Ideal Applications

🔥 Surface temperature monitoring

⚙️ Motors, bearings, and machinery

🔌 Electrical and electronic equipment

🏭 Industrial process equipment

🧰 Equipment troubleshooting

🔧 Preventive maintenance programs

🧪 Product and component testing

📋 Temperature documentation

Back
Type of Sensor: Color Change / Ascending
Temperature Sensing Range: 171°F~261°F ( 77°C~127°C )
Temperature Accuracy: +/- 2°F (+/- 1°C) typical
Temperature Scale: °F and °C
Dimensions: 2 x 0.7" (51 x 18mm)
Weight: .02
Calibration Available: Certificate of Conformance ( $ Extra )
Sold As: Pack of 10 Pieces
Adhesive: Yes
Storage Conditions: Store in a cool dark place.
Number of Events: 10
Color Change: Permanent
Shelf Life: 12 months
Adhesive Type: 3M
Back
  • (1) Pack of 10 Labels
  • Instructions
  • Expert Technical Support
Back

Compliance & Risk Mitigation

🧮 Ten levels provide detailed peak indication

⬜⬛ Permanent change documents heat exposure

🎯 Defined accuracy supports evaluation

🏷️ Adhesive backing simplifies installation

📋 Permanent results support documentation

🔥 Helps identify overheating equipment

🔧 Supports preventive maintenance programs

*This irreversible indicator provides a permanent visual record of the highest indicated surface-temperature level reached between 171°F and 261°F (77°C to 127°C). It does not measure exposure duration or provide continuous temperature history. Apply to a clean, suitable surface and store unused labels in a cool, dark location. Shelf life is approximately 12 monthswhen properly stored.*

──────────────────────────

Back
Irreversible Temperature Labels Instructions for Use Peel indicator from release paper Apply to any clean, grease free surface ensuring that the indicator has adhered to the surface A color change from silver white/orange to black indicates that the temperature has been reached . Store in cool dry place below <64ºF &< 50% relative humidity
