🧪 Reversible Thermochromic Sheet
Key Features
✅ Reversible color change between 86 °F and 95 °F
✅ Visual, reusable temperature indication with no power source
✅ 3M adhesive backing for easy mounting and removal
✅ Ideal for packaging, safety, or educational applications
✅ Provides repeatable thermal response for visual monitoring
✅ Lightweight, durable, and can be cut to size

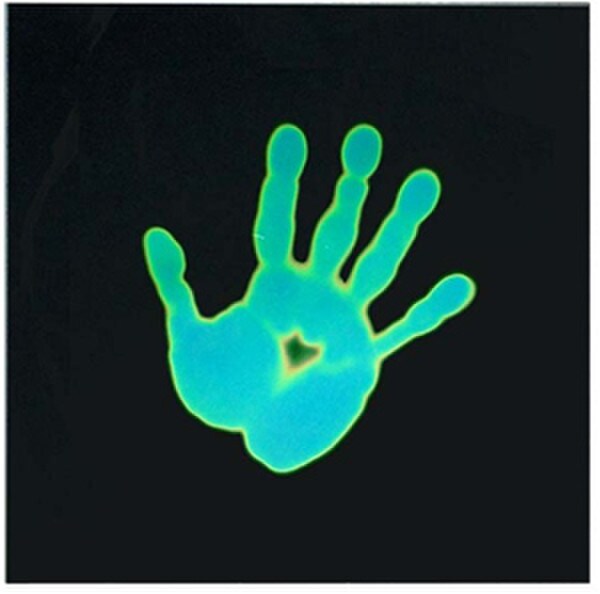

Thermochromic sheets made out of polyester (mylar) that use microencapsulated liquid crystal color changing inks to indicate a specific temperature or range. Liquid crystal mylar sheets with adhesive backing can be cut to any size. With a fast response time, these temperature sensitive sheets provide a quick visual indication of temperature gradients. Color Changes as temperature increases, the color of the sheets changes from black to red, red to green, green to blue, and finally to black again.
CUSTOM SHEETS
Other color sequences and sizes are available. Please call our customer service department for further information.
Visit Temperature Labels 101 to learn how these simple sensors work.
| Type of Sensor: | Liquid Crystal / Reversible |
| Temperature Sensing Range: | 86 ~ 95°F ( 30 ~ 35°C ) |
| Temperature Accuracy: | +/- 2°F (+/- 1°C) typical |
| Temperature Scale: | °F and °C |
| Dimensions: | 12" x 12" |
| Weight: | .1 |
| Calibration Available: | Certificate of Conformance ( $ Extra ) |
| Adhesive: | Yes |
| Color Change: | Reversible |
| Adhesive Type: | 3M |
- 12" x 12" Thermal Sheet
