Irreversible ThermoStrip DC

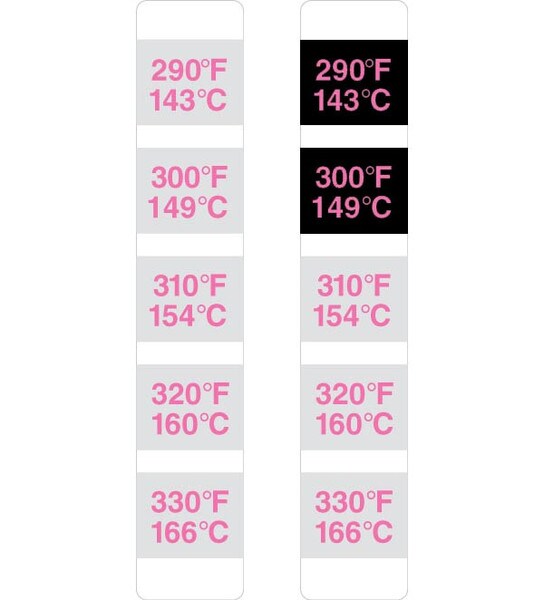

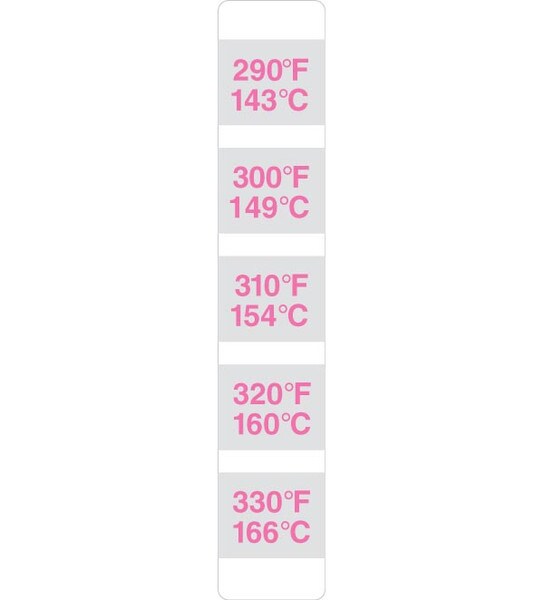

Thermostrip DC, a highly accurate heat indicator designed to assist with the drying, curing, laminating or bonding process. Each individual 10 mm X 56 mm self-adhesive strip has 5 temperature settings that when exposed to the rated temperature will permanently change color from silver to black indicating attained temperature
Type of Sensor: | Color Change / Ascending |
Temperature Sensing Range: | 289°~330°F (143°~166°C) |
Temperature Accuracy: | +/- 8°F (+/- 4°C) typical |
Temperature Scale: | °F or °C |
Dimensions: | 0.39" x 2.2" (10 mm x 56 mm) |
Weight: | .02 |
Calibration Available: | Certificate of Conformance ( $ Extra ) |
Sold As: | Pack of 16 Pieces |
Adhesive: | Yes |
Storage Conditions: | Cool Dry Location |
Number of Events: | 5 |
Color Change: | Permanent |
Shelf Life: | 12-18 MONTHS |
Adhesive Type: | 3M |
- Irreversible ThermoStrip DC
- Instructions
- Pack of 16 labels
- Expert Technical Support
Temperature Tape is perfect for numerous industrial processes where it is necessary to provide visual evidence of attained temperature at a bonding site, when an item is undergoing curing or drying. It is also used to insure that temperature is maintained during the laminating process and helps to insure that garments finished in a temperature tunnel do not over heat. Printers and ink manufacturers find Thermostrip® DC useful in determining how UV inks react at various temperatures.
