🧪 Reversible Thermochromic Sheet

$50.67
QuantityPrice
1 – 1$50.67
2 – 2$48.14
3 +$45.60
SKU: TLCSEN485
Provided: Each

12" × 12" Reusable Liquid Crystal Temperature Film

──────────────────────────

Quick Specs

🌡 Temperature Range: 77°F to 86°F (25°C to 30°C)

🧪 Indicator Type: Reversible Liquid Crystal

🎯 Accuracy: ±2°F (±1°C) Typical

🎨 Color Change: Reversible

♻️ Usage: Reusable

📐 Dimensions: 12" × 12"

🏷️ Adhesive: None — Non-Adhesive Back

🔋 Power: No Batteries Required

⚖️ Calibration: Certificate of Conformance Available

──────────────────────────

Compliance & Risk Mitigation

🛡 Supports non-invasive temperature observation

🌡 Provides immediate visual temperature response

♻️ Reusable for repeated temperature testing

🔋 Requires no batteries or external power

📋 Supports testing and demonstration procedures

⚖️ Certificate of Conformance available

This reversible thermochromic sheet displays current temperature conditions and does not provide a permanent record of previous temperature exposure. Use it as a visual temperature indication aid where appropriate.

──────────────────────────

Related Items & Spare Parts

🧪 Reversible liquid crystal temperature labels

🧪 Thermochromic dots and temperature strips

⬜⬛ Irreversible labels for permanent records

🌡 Contact thermometers for temperature verification

📈 Temperature data loggers for recorded monitoring

Explore the related items at the bottom of this page for compatible accessories, replacement parts, and supplies.

──────────────────────────

🛒 Add to Cart Now or 📞 Call 1-800-TIP-TEMP (847-8367) for expert guidance.

IN STOCK

Current Stock: 7

Notable Features

1 C AccuracyVisual AlertsTemperature C/FTT Verified
Back

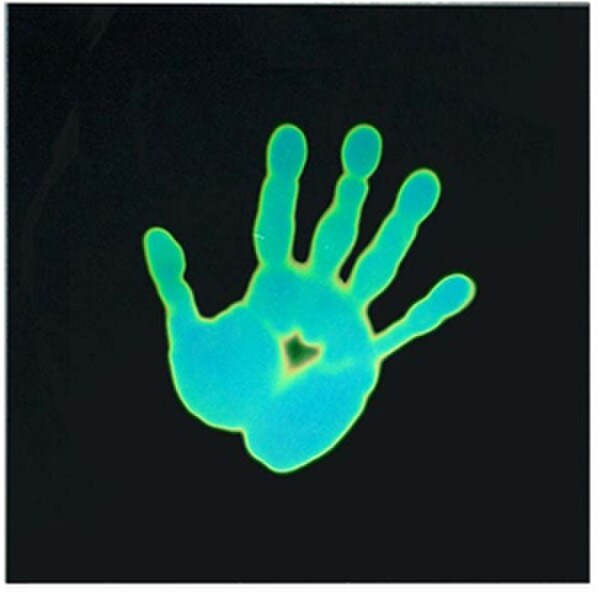

Thermochromic sheets made out of polyester (mylar) that use microencapsulated liquid crystal color changing inks to indicate a specific temperature or range. Liquid crystal mylar sheets with adhesive backing can be cut to any size. The Reversible Thermochromic Sheet provides a large-area visual indication of surface temperature conditions from 77°F to 86°F (25°C to 30°C). The liquid crystal material changes color as temperature changes and returns to its original state as conditions change, allowing the non-adhesive sheet to be used repeatedly for demonstrations, testing, research, and temperature visualization. Color Changes as temperature increases, the color of the sheets changes from black to red, red to green, green to blue, and finally to black again.

CUSTOM SHEETS
Other color sequences and sizes are available. Please call our customer service department for further information.

Visit Temperature Labels 101 to learn how these simple sensors work.

──────────────────────────

Ideal Applications

🔬 Research and development

🧪 Laboratory demonstrations

🎓 Educational temperature experiments

🌡 Surface temperature visualization

🏭 Industrial testing and evaluation

⚙️ Equipment temperature pattern observation

✂️ Custom temperature indicator applications

Back
Type of Sensor: Liquid Crystal / Reversible
Temperature Sensing Range: 77 - 86°F ( 25 - 30°C )
Temperature Accuracy: +/- 2°F (+/- 1°C) typical
Temperature Scale: °F and °C
Dimensions: 12" x 12"
Weight: .1
Calibration Available: Certificate of Conformance ( $ Extra )
Adhesive: No
Color Change: Reversible
Back
  • 12" x 12" Thermal Sheet
  • Expert Technical Support
Back
Back

Range: 77°F to 86°F (25°C to 30°C)

Color Changes as temperature increases, the color of the sheets changes from black to red at 25C, red to green 27.5C, green to blue 30C, and finally to black again.> 31C
