Custom Liquid Crystal Temperature Indicator
Custom SCA Red Liquid Crystal Temperature Indicator

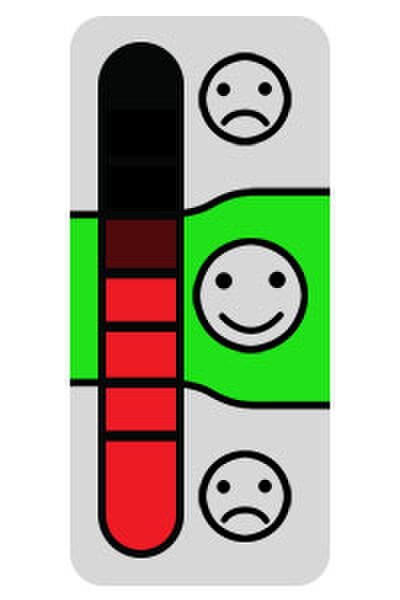

Infant Water Testing Gauge
Top Segment Always Black.
Bottom Segment Always Red
Stock: 5 mil with 3M 9495LE adhesive
Infant Water Testing Gauge
6 Events:31°C,33,35,37,39, 41°C, 2°C increments
( 87.8°F, 91.4, 95, 98.6, 102.2, 105.8°F )
Top Segment Always Black.
Bottom Segment Always Red
Stock: 5 mil with 3M 9495LE adhesive
| Type of Sensor: | Liquid Crystal |
| Temperature Sensing Range: | 31°C-33-35-37-39-41°C |
| Temperature Accuracy: | +/- 2°F (+/- 1°C) typical |
| Temperature Resolution: | 2°C |
| Temperature Scale: | °F and °C |
| Dimensions: | 2.25"H x 1.00"W, Rounded Corners |
| Adhesive: | Yes |
| Storage Conditions: | Ambient |
| Number of Events: | Six |
| Color Change: | Reversible |

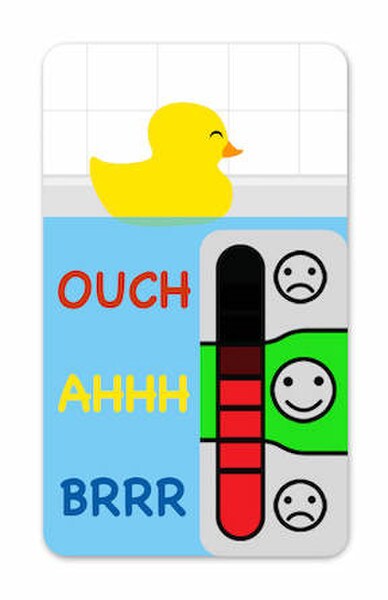

Hold card under running water or place card directly into water and watch the Red Arrows rise or fall based on the temperature conditions. Associate the facial images with water temperature.
