12 Position Thermocouple Selector Switch

12 Position Thermocouple Selector Switch
Panel mounting selector unit in standard DIN sized case
Accepts J- K- T Thermocouples
12 inputs, 1 output

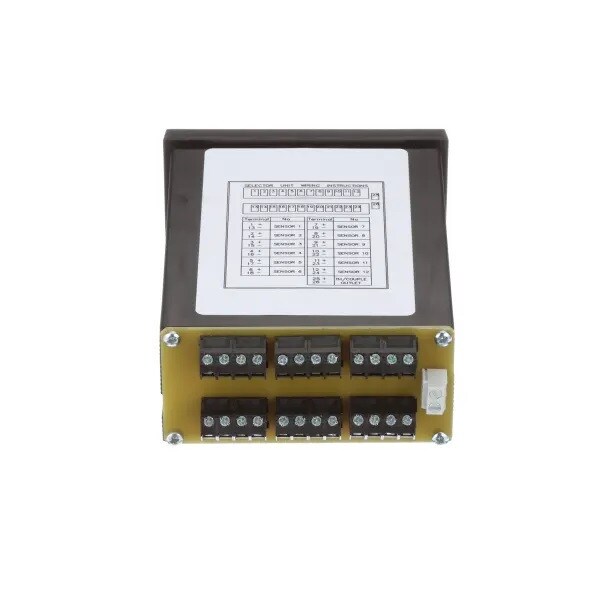

Input connections: barrier terminal strip
Output: Hard wired terminal block
Dimensions (WxHxD): 90 x 44 x 130 mm ( 3.54" x 1.73" x 5.12" )
Panel cut out (HxW): 45 x 92 mm
Readings can be taken from a number of sensors when used with digital temperature indicators.

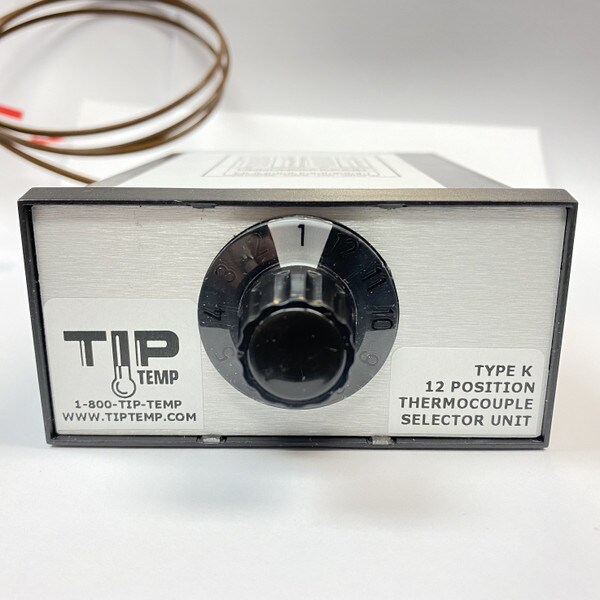

A clear indication of thermocouple selection
