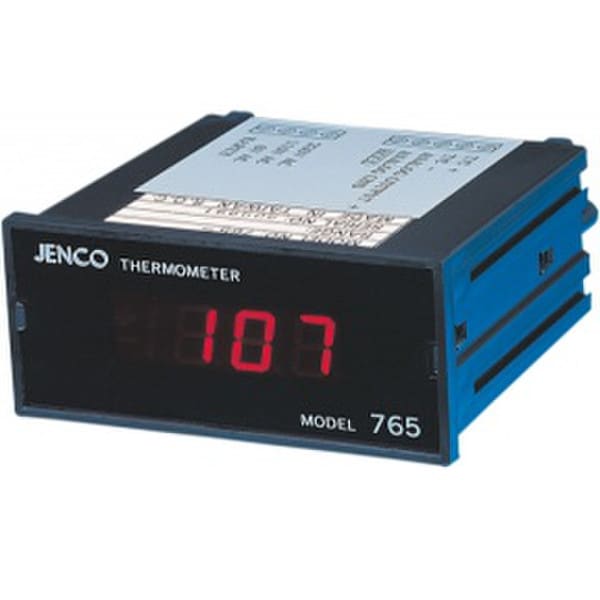

⚫ “J” T/C Input Panel Meter – ⅛ DIN
✅ Accepts Type “J” thermocouple inputs
✅ Compact 1/8 DIN design saves panel space
✅ 50/60 Hz rejection for stable readings
✅ Analog retransmission for control or monitoring systems
✅ Cold junction compensation ensures accurate measurements
✅ Upscale break detection alerts on sensor failure
✅ Simple installation and maintenance
──────────────────────────
⅛ DIN Panel mount digital thermometer with analog voltage output of 1 mV per digit, with analog output accuracy of ± 0.2%, features a bright red LED display and 1/8 DIN plastic housing. °C/°F selectable via plastic jumper behind front bezel. Type J Meter Operating Ambient Range 0 to 60°C. 115/230V AC operation
- Part number: JENDPM008
- High accuracy
- 50/60 Hz rejection design

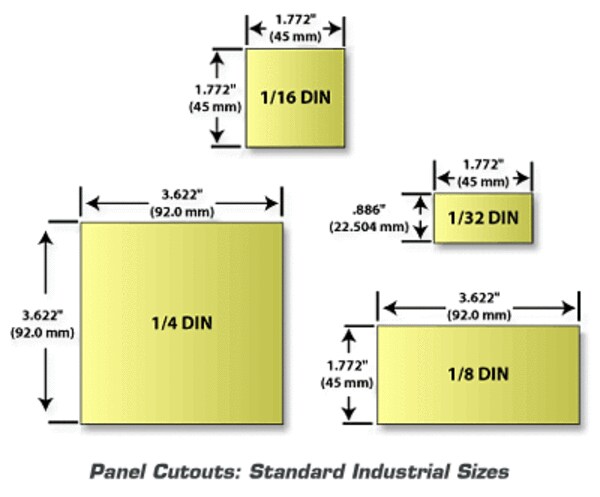

- Compact 1/8 DIN plastic case
- °C/°F selectable w/ re-calibration
- Type J Thermocouple Input
- Upscale break detection
- Cold junction compensation design
- 1 mV/digit analog output
- Easy ti install
- 0.56" high efficiency LED display
- 115 VAC/230VAC operation
- Easy disconnect wiring connectors
- View Instruction Manual for Additional Specs
- "J" Thermocouple Panel Meter ⅛ DIN
- Instructions
- Mounting Hardware
- Expert Technical Support
Make sure to consult with a qualified electrician
