⚫ Type “J” Industrial Temperature Sensor

(0)No Reviews yet
$94.95
QuantityPrice
SKU: TIPTCJ019

Durable Stainless-Steel Probe for Reliable Process Temperature Monitoring

Quick Specs

🌡 Temperature Range: 32 °F to 1400 °F (0 °C to 760 °C)
🎯 Accuracy: ± 4 °F (± 2 °C) typical
🔩 Sheath Material: 316 Stainless Steel
📏 Sheath Diameter: 0.25 in (1/4 in)
📐 Sheath Length: 6 in
⚡ Junction Type: Grounded
🔌 Connector: Large Thermocouple Head
📋 Calibration: Available (purchased separately)
🧪 Special Limits: Available upon request
🏷️ TIPTEMP Part Number: TC1-J-SS-14-G-6

📦 Browse the related products below to find compatible connectors, extension wire, and mounting fittings that integrate seamlessly with this probe.

🛒 Add to Cart Now or 📞 Call 1-800-TIP-TEMP for expert guidance.

Make changes to this item and customize your probe. CLICK HERE

Notable Features

Back

Details

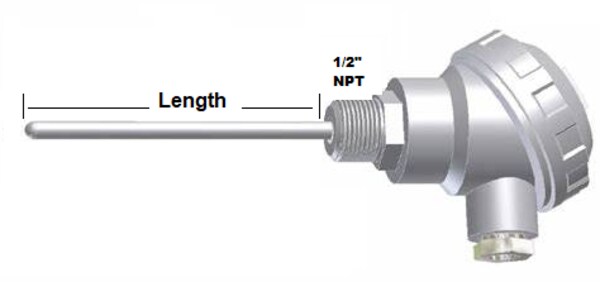

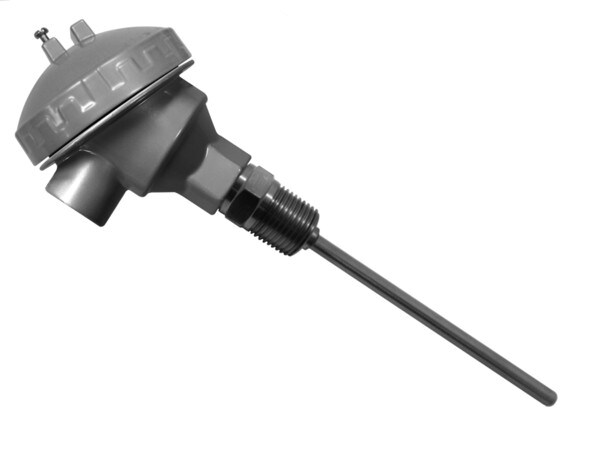

TC1-J-SS-14-G-6 Industrial Process Temperature Sensor : 1/2" NPT process thread, Type "J" Thermocouple, Stainless Steel Sheath, 1/4" dia, grounded junction, 6" long fast responding tip.

Key Features

✅ Type “J” iron–constantan thermocouple for industrial applications
✅ Grounded junction for fast and stable thermal response
✅ Rugged 316 SS sheath for extended service life in harsh environments
✅ Rated up to 1400 °F (760 °C) for process or equipment monitoring
✅ Large thermocouple head allows secure wiring and easy installation
✅ Custom probe lengths and special limits available upon request

Back

Specs

Temperature Sensing Range: 32°F ~ 1400°F ( 0°C ~760C )
Temperature Accuracy: +/- 4°F (+/- 2°C) typical
Calibration Available: Yes (purchased separately)
Thermocouple Type: Thermocouple
Sheath Material: 316 Stainless Steel
Sheath Diameter: 0.250
Sheath Length: 6"
Plug Size: Large Thermocouple Head
Special Limits: Upon request
