⚫ Type J Thermocouple Extension Wire

$0.60
QuantityPrice
25 – 99$0.60
100 – 249$0.55
250 – 499$0.50
500 – 999$0.45
1000 +$0.40
SKU: TIPWRJ008
Provided: Feet

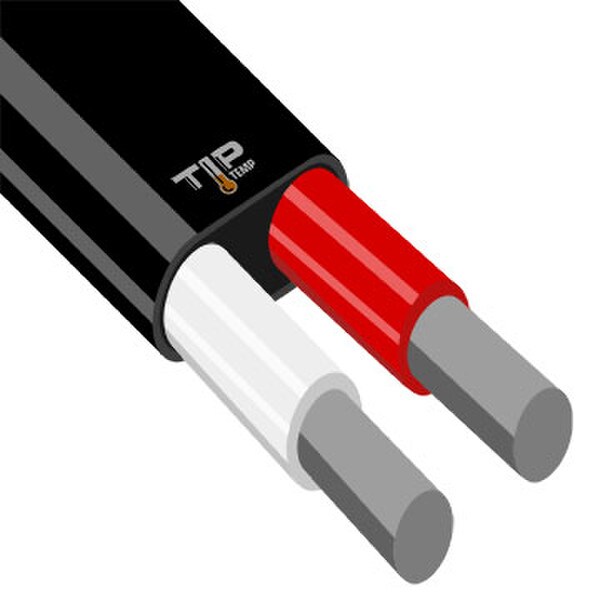

20 AWG Solid Type J Extension Wire with Polyvinyl Jacket

──────────────────────────

Quick Specs

🌡 Thermocouple Type: ⚫ J

🧵 Wire Grade: Thermocouple Extension Grade

🧵 Conductors: Iron (+) / Constantan (-)

📏 Wire Gauge: 20 AWG Solid

🛡️ Insulation / Jacket: Polyvinyl

🌡 Max Temperature: 220°F (105°C)

⚪ Positive Conductor: White — Iron (+)

🔴 Negative Conductor: Red — Constantan (-)

🧲 Magnetic Conductor: White Iron (+)

📏 Sold As: Cut-to-Length by the Foot

─────────────────────────

Compliance & Risk Mitigation

🛡 Polyvinyl protects conductors to 220°F

⚫ Maintains Type J extension compatibility

🧲 Magnetic Iron aids polarity identification

📋 Correct polarity helps prevent wiring errors

🌡 Supports temperature signal integrity

🔧 Supports organized sensor installations

Use this extension wire only with compatible Type J thermocouple circuits. Verify conductor polarity, jacket temperature limits, environmental conditions, and instrument compatibility before installation.

──────────────────────────

Related Items & Spare Parts

⚫ Type J thermocouples and probes

🔌 Type J plugs, jacks, and connectors

🧮 Type J thermocouple jack panels

🧰 Cable clamps and connector hardware

⚙️ Type J thermometers and controllers

🧵 Type J wire in alternate gauges and insulation

Explore the related items at the bottom of this page for compatible accessories, replacement parts, and supplies.

──────────────────────────

🛒 Add to Cart Now or 📞 Call 1-800-TIP-TEMP (847-8367) for expert guidance.

IN STOCK

Current Stock: 667

Notable Features

2℃ AccuracyBusinessCalibrationSparePartThermocoupleTT Verified
Back

Thermocouple Extension Grade Wire is used on comparatively lower temperature applications and provides electrical insulation, good moisture and abrasion resistance. It has a lower cost and is primarily used to extend the thermocouple signal. Extension wire is usually material that did not meet ASTM thermocouple grade wire measurement accuracy specifications. Typical utilization temperatures of 220°F / 105°C. Red is always negative. The other color-coded wire is always positive.

──────────────────────────

Ideal Applications

⚫ Type J thermocouple installations

🏭 Industrial temperature monitoring

⚙️ Process control systems

📈 Temperature data acquisition systems

🧪 Laboratory and test equipment

🔌 Sensor-to-instrument connections

🧵 General-purpose thermocouple extensions

Back
Type of Sensor: Thermocouple Extension Grade Wire
Temperature Sensing Range: Polyvinyl ( Max Temp 220°F / 105°C )
Temperature Scale: °F and °C
Sensor Wire Length: Cut To Length
Dimensions: .095 x .151
Weight: .016 Per Ft. ( 16 lb. / 1000 Ft. )
Calibration Available: Yes (purchased separately)
Sold As: Feet
Wire Gauge: 20 Ga.
Wire Length: Cut To Order ( min length 25 Ft.)
Max Temp: 220°F / 105°C
Back

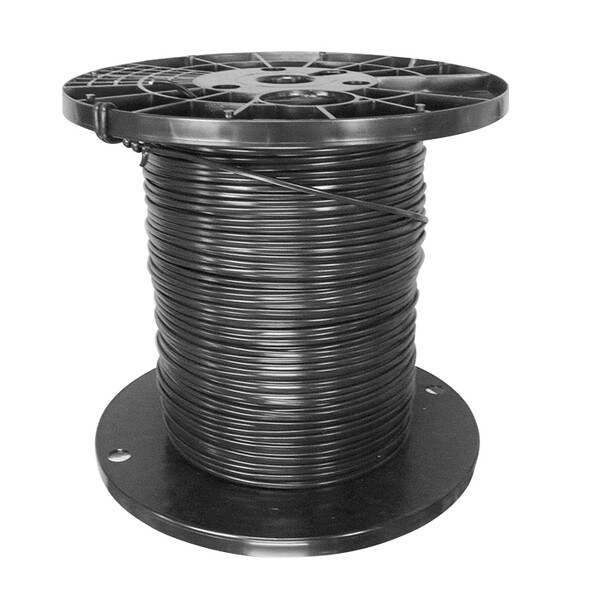

  • Type "J" Thermocouple Extension Wire Cut to Order Minimum 25 Ft.
  • Expert Technical Support
Back
This low cost thermocouple wire is recommended for extending the distance of your typical thermocouple signal.
